Specifications:

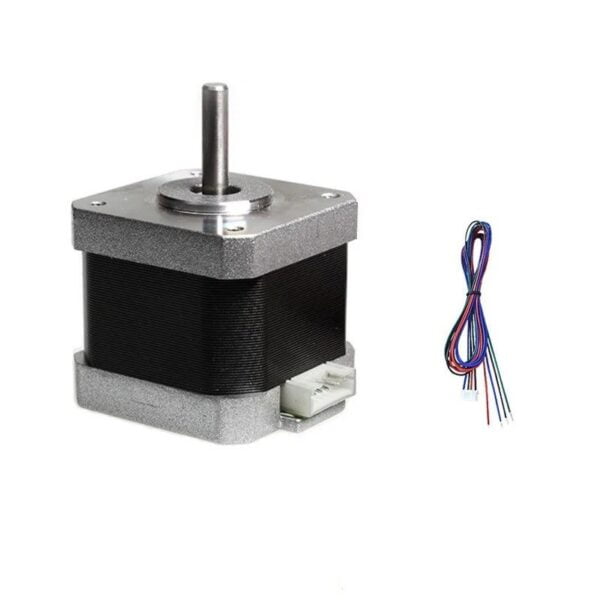

Model | NEMA 17 |
Motor Type | Single Shaft |
Step Angle | 1.8° |
Holding Torque (Kg-Cm) | 5.6 |
Operating Voltage (VDC) | 3.1 |
Supply Current (A) | 1.2 A/Phase |
No. of Leads | 4 |
Inductance (mH/Phase) | 3.2 |
Rotor Inertia (gm-cm2) | 54 |
Weight (gm) | 375 |
Dimensions (mm) LxWxH | 42x42x48 |
Detent Torque (kg-cm) | 0.28 |
Frame Size (mm) | 42 x 42 |
Inductance Accuracy | ±20% |
Resistance Accuracy | ±10% |
Step Angle Accuracy | ±5% |
Shaft Type | D-type |
Shaft Diameter (mm) | 5 |
Shaft Length (mm) | 20 |
Cable Length (cm) | 72 |
