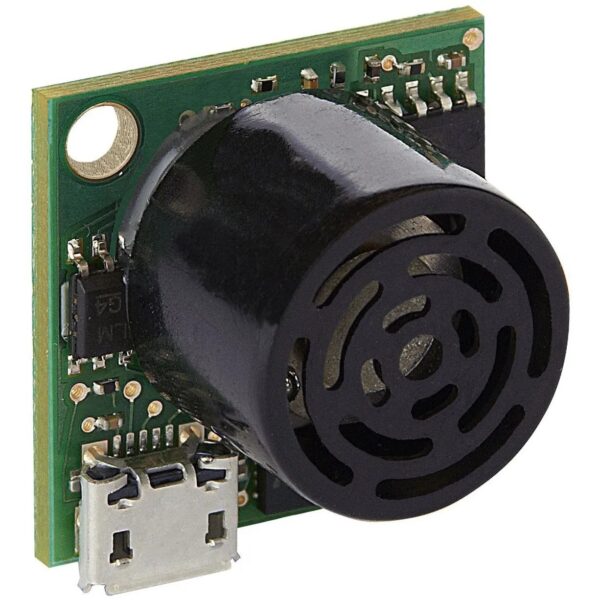

This MAXBOTIX MB1414 USB-ProxSonar-EZ1 Ultrasonic Sensor Module is for indoor use only.
Features of the MB1414, USB-ProxSonar-EZ1, include one-inch resolution, both proximity, and range information for the nearest detectable target, and serial data over an easy to use USB interface.
The USB-ProxSonar‑EZ line is designed for people or obstacles that enter a calibrated detection zone. The USB-ProxSonar-EZ proximity sensors report when a person or other detectable target enters the detection zone. The target is released after leaving the USB-ProxSonar-EZ’s detection zone.
Specifications
| Model | MB1414 |
| Frequency(Hz) | 42000 |
| Resolution | 2.5 cm |
| Max. Sensing Distance (cm) | 318 |
| Sensor Cover Dia. (mm) | 16 |
| PCB Size ( L x W ) mm | 22.5 x 22.5 |
| Weight (gm) | 3 |
| Shipment Weight | 0.005 kg |
Features :
- USB interface
- Around 2.5-second target acquire time.
- Around 1.5 second target release time.
- Automatic multi-sensor operation
- People sensor
- Maximum Range of 125 inches (318 cm)
- Detection zone range of 60 inches (152 cm)
- Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
- Small, lightweight module
- Designed for easy integration into your project or product
- Longest range detection zone
Package Includes :
- 1 x MAXBOTIX MB1414 USB-ProxSonar-EZ1 Ultrasonic Sensor
