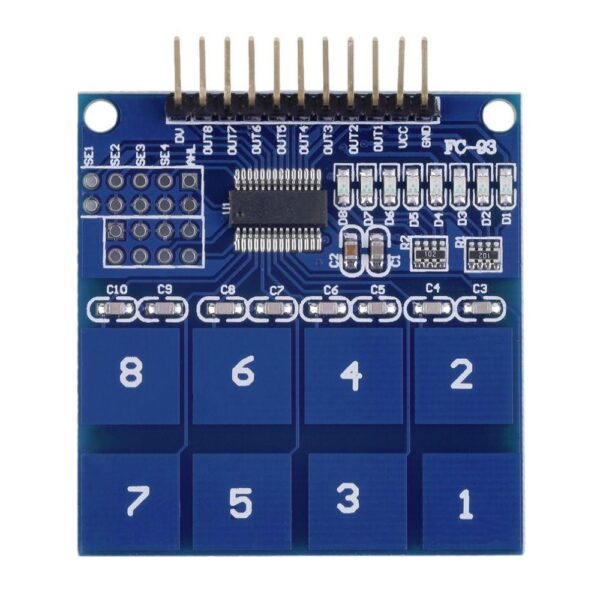

TTP226 Capacitive Touch Switch Module

Specification :

• Operating Voltage Range                             2.4 ~ 5.5V DC
• Output Sink Current                                       8mA
• Output Pin Pull-up Current                          4mA
• Response Time (Low Power Mode)         220ms
• Response Time                                                 60mS
• Length (mm)                                                      46
• Width (mm)                                                       47
• Height (mm)                                                      11
• Weight (gm)                                                       6
• Shipment Dimensions                                    8 × 10 × 1 cm

Warranty : 10 days

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of compoindia  customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.
