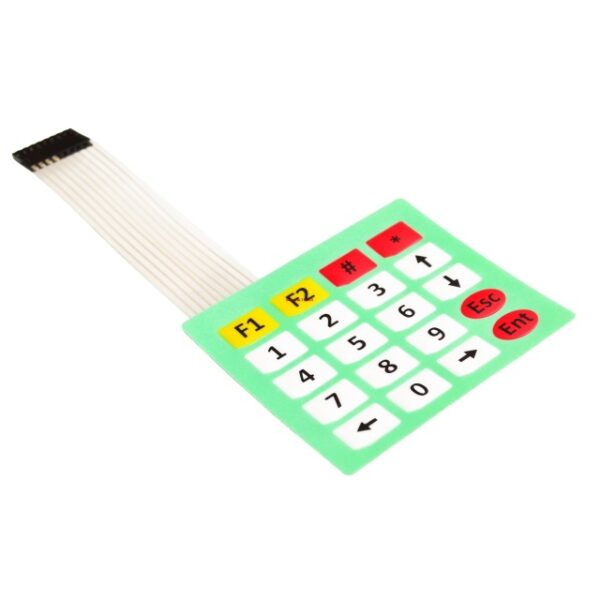

4×5 Matrix Array 20 Key Membrane Switch Keypad Keyboard For Arduino

Specification :

• Voltage(V)             DC 35V
• Current(A)             100mA
• Contact Resistance             100mΩ max.
• Insulation Resistance         100MΩ
• Dielectric Strength               250VRms
• Operating Temperature Range        -40°C to 80°C
• Storage condition                -40 to 80°C
• Length (mm)        180
• Width (mm)           85
• Height (mm)         1
• Weight (gm)          8
• Shipment Dimensions       9.5 × 8 × 4 cm

This 4×5 Matrix Array 20 Key Membrane Switch Keypad Keyboard is a high-quality soft-touch feeling button keypad with 100 million life-stroke lifespans and good resistance to environmental conditions.

Warranty : 10 days

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of compoindia  customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.
