Description:

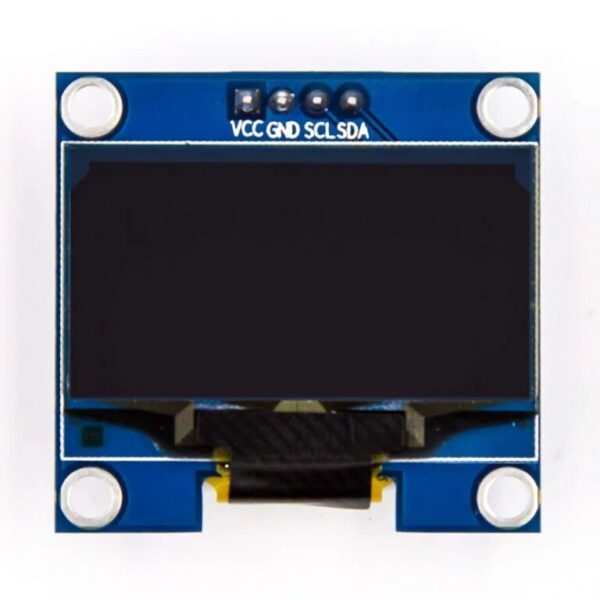

1.3 Inch I2C IIC OLED 4 pin Blue LCD Module . The display module can be interfaced with any microcontroller using SPI/IIC protocols. It is having a resolution of 128×64. The package includes display board, display, 6 pin male header pre-soldered to board.
OLEDs basic structure consists of organic materials positioned between the cathode and the anode, which is composed of electric conductive transparent Indium Tin Oxide (ITO). The organic materials compose a multi-layered thin film, which includes the Hole Transporting Layer (HTL), Emission Layer (EML) and the Electron Transporting Layer (ETL).
OLED is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology,1.3 Inch I2C IIC OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.
- Only Need 2 I/O Port to Control
- Pixel Color:
- Yellow (128×16 pixels)
- Blue (128×48 pixels)
- Fully Compatible with Arduino
Pin Details of 1.3 Inch I2C IIC OLED 4 pin Blue LCD Module:
- GND (power ground)
- VCC (positive power supply)
- SCL (clock line)
- SDA (data line)
Specifications:
Operating Voltage | 3.3V-5V DC |
Interface type | IIC interface |
High Resolution | 128 x 64 |
Driver IC | SH1106 |
Display Area | 29.42 x 14.7mm |
Operating temperature | -40° to 70° C |
Length (mm) | 35.5 |
Width (mm) | 33.5 |
Height (mm) | 3 |
Weight (gm) | 6 |
