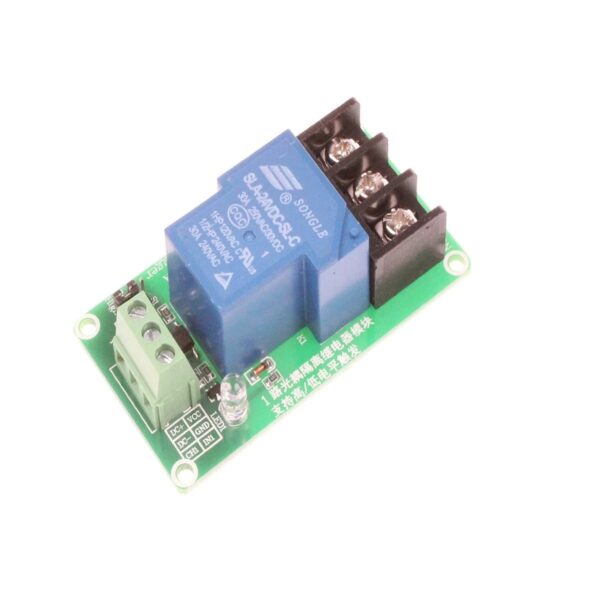

This 1 channel 24V 30A relay control board module with optocoupler modules is compliant with international safety standards, control and load areas isolation trenches it has a single relay a genuine.
The inputs of 1 Channel 24V 30A Relay Module are isolated to protect any delicate control circuitry.
The power supply and relay instructions, lit, a disconnect are off. The input signal, signal, common Terminal and start conducting. It can be used as a single chip module for appliance control and work with both DC or AC signals where you can control the 220V AC load.
Specifications
| Channel | 1 |
| Trigger Voltage (VDC) | 24 |
| Switching Voltage (VAC) | 250@30A |
| Switching Voltage (VDC) | 24@30A |
| Shipment Weight | 0.048 kg |
Features
- High impedance controller pin
- Pull-down circuit for the avoidance of malfunction
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil
- Power supply indicator lamp
- Control indicator lamp
- With 4 fixed screw holes, hole diameter 3.1mm, convenient installation, and fixation
- Channel: 1 channel
- Relay Voltage: 24V
- High impedance controller pin
- Pull-down circuit for the avoidance of malfunction
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil
Package Include :
- 1 x 1 channel 24V 30A relay control board module with an optocoupler
