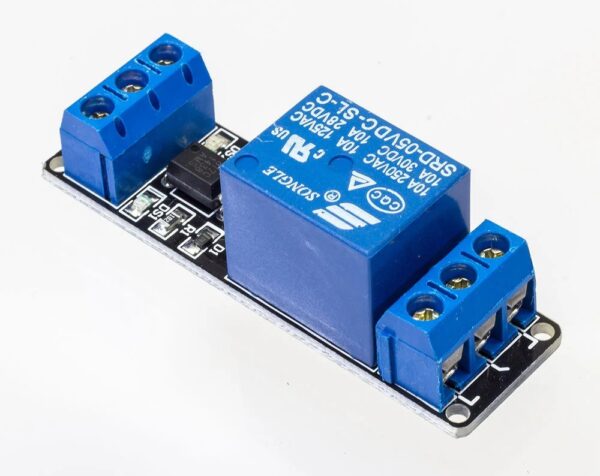

This 1 channel 5V 10A relay control board module with optocoupler modules is compliant with international safety standards, control and load areas isolation trenches it has a single relay a genuine.
Specifications
| Channel | 1-Jan |
| Trigger Voltage (VDC) | 5 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Length (mm) | 57 |
| Width (mm) | 18 |
| Height (mm) | 18 |
| Weight (gm) | 16 |
| Shipment Weight | 0.02 kg |
Features :
- High impedance controller pin
- Pull-down circuit for the avoidance of malfunction
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil
- Power supply indicator lamp
- Control indicator lamp
- With 4 fixed screw holes, hole diameter 3.1mm, convenient installation, and fixation
Package Include :
- 1 x 1 channel 5V 10A relay control board module with an optocoupler
