Specification

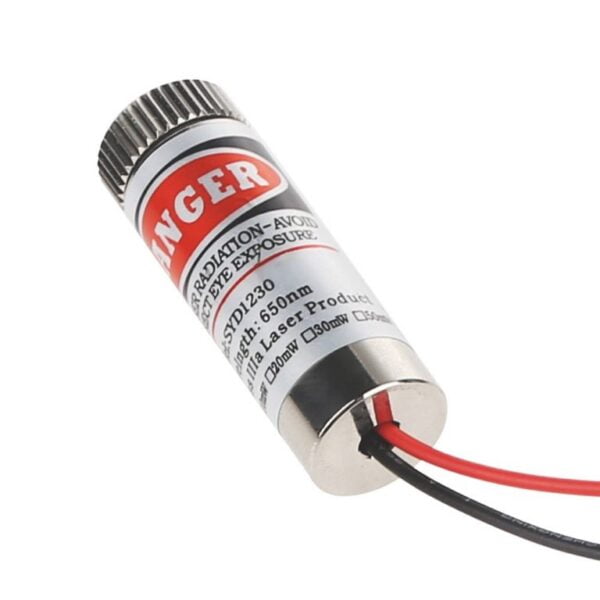

- Laser Output Type: Red CROSS-LINE Laser
- Dimensions: Diameter: 12mm, Lenght: 35mm.
- Weight: 15 gm.
- Wavelength: 650nm.
- Voltage: 3~6V.
- Output Power: Min 2.5mW, Typical 3.0mW, Max 5.0mW.
- Working current: Min 10mA, Typical 20mA, Max 25mA.
- Focus point Intensity can be adjusted with help of lens ring head.
NOTE and CAUTIONS:
- It does not emit the RED-Line or Point since it is a Single RED Cross LINE module.
- Please use the DC power supply 3~6V.
- Careful! This laser module has high output power, please wear goggles when testing or using as it can be hazardous to your vision.
- The laser beam must not be directed towards the eyes of a person or an animal in any way.
- The red cord is an anode, the black cord is a cathode.
- Line-cross pattern Design of head shown in Image may differ from the actual product but it doesn’t affect the functionality of the product.
Warranty : 10 days
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of compoindia customers from any kind of manufacturing defects. Reimbursement or replacement will be done against manufacturing defects.
