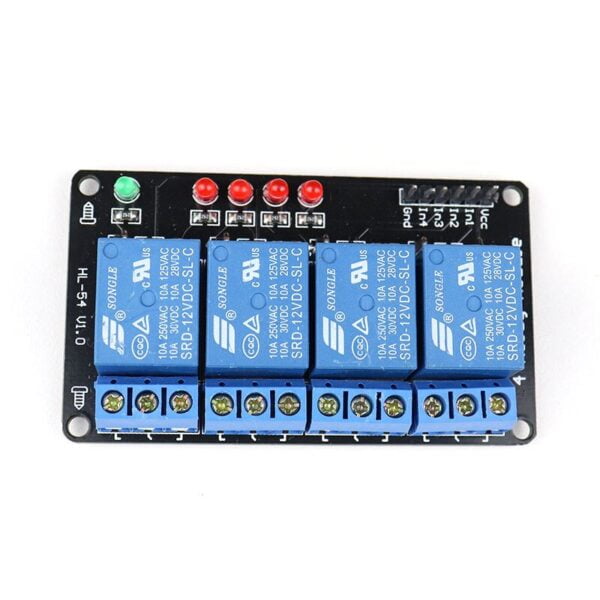

This is a 4-Channel Relay interface board that allows you to control various appliances, and other equipment’s with large current. It can be controlled directly by Micro-controller (Arduino, Raspberry Pi, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).
Specifications
| Trigger Voltage (VDC) | 12 |
| Trigger Current (mA) | 20 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Operating Temperature (°C) | -40 to 85 |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| Storage condition (℃) | – 65 to 125 |
| Length (mm) | 74 |
| Width (mm) | 43 |
| Height (mm) | 17 |
| Weight (gm) | 49 |
| Shipment Weight | 0.053 kg |
Features:
- 4-Channel Relay interface board and each one needs 15-20mA Driver Current.
- Both controlled by 12V and 5V input Voltage.
- Equipped with high-current relay, AC250V 10A ; DC30V 10A.
- Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic active low).
- Indication LED’s for Relay output status.
Package Includes:
- 1 x 12V 4 Channel Relay Module
