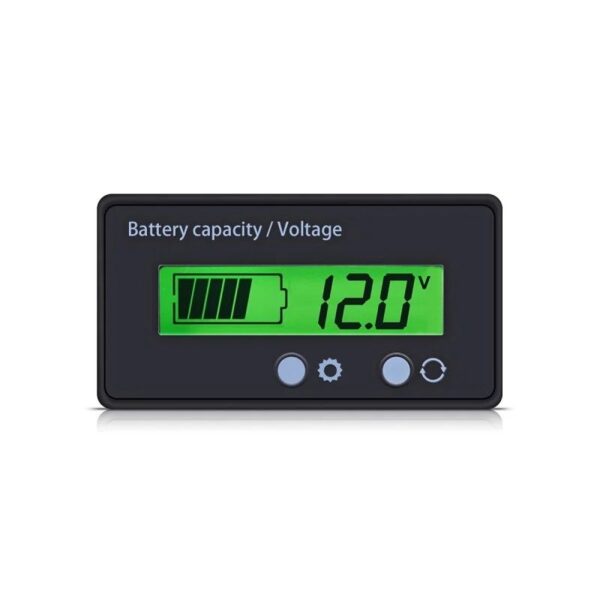

                                                                                                                                                HomeDisplayLCD DISPLAY 12V-84V Lead-Acid 3-24 Strings Lithium Battery Power Display Meter Power Display GY-6GS Green Self setting

                                                                                                                                                12V-84V Lead-Acid 3-24 Strings Lithium Battery Power Display Meter Power Display GY-6GS Green Self setting

                                                                                                                                                ₹566.00 (Exclusive GST Tax 18%)

                                                                                                                                                Available Offers
                                                                                                                                                • ► Free Shipping By Bluedart Air  : On over value Rs.3000
                                                                                                                                                • ► Bulk Quantities discount :  send mail on sales@compoindia.com
                                                                                                                                                • ► Tax invoice  : Get GST invoice and save up to 18% on business purchases

                                                                                                                                                Note : Customer Don't need to pay any extra charge like custom duty and any other cost. Have to pay only GST with price.

                                                                                                                                                Out of stock

                                                                                                                                                ► Bulk Quantities discount :  send mail on sales@compoindia.com



                                                                                                                                                Great price on bulk order

                                                                                                                                                Secure Payment

                                                                                                                                                Fast & Quick Delivery

                                                                                                                                                7 days Return Policy

                                                                                                                                                More on shipping and other trade services
                                                                                                                                                safety-delivery

                                                                                                                                                Your Safety is our Priority

                                                                                                                                                India, we care for you and are here for you
                                                                                                                                                Know More

                                                                                                                                                Help us improve your shopping experience

                                                                                                                                                Write your Feed Back

                                                                                                                                                review

                                                                                                                                                Can't find what you are looking for?

                                                                                                                                                Let Us Know
                                                                                                                                                Add to wishlist
                                                                                                                                                SKU: K71747 Category: LCD DISPLAY
                                                                                                                                                Share
                                                                                                                                                close
                                                                                                                                                compoindia | Robotics parts store | Development boards | Raspberry Pi | Display
                                                                                                                                                4.9
                                                                                                                                                Based on 130 reviews
                                                                                                                                                powered by Google
                                                                                                                                                review us on
                                                                                                                                                Melford Mutara
                                                                                                                                                11:21 11 Dec 23
                                                                                                                                                I was very happy about the servicesGood customer care
                                                                                                                                                tafadzwa chipere
                                                                                                                                                11:20 11 Dec 23
                                                                                                                                                Excellent services
                                                                                                                                                Bhavin Ambaliya
                                                                                                                                                10:40 11 Dec 23
                                                                                                                                                2021 01126
                                                                                                                                                06:13 23 Nov 23
                                                                                                                                                the owner helped a lot with our project and explained all the components .
                                                                                                                                                Aadi Jain 20220301003
                                                                                                                                                05:27 01 Nov 23
                                                                                                                                                Gaddam Dinesh
                                                                                                                                                08:23 07 Oct 23
                                                                                                                                                Product and service well
                                                                                                                                                Ishwariya Mathivanan
                                                                                                                                                17:39 06 Oct 23
                                                                                                                                                The person responded instantly even after office hours ! Excellent service and extremely fast delivery!!!
                                                                                                                                                RAVAL DIPAK V.
                                                                                                                                                14:07 02 Jan 23
                                                                                                                                                Very good staff. Best price affordable and best quality. Almost all parts like Arduino, raspberry and their components are available. Also Delivery is also quick.
                                                                                                                                                js_loader
                                                                                                                                                • Description
                                                                                                                                                Description

                                                                                                                                                The Battery Capacity Voltage Meter can not only measure the battery voltage but also the capacity, show you with percentage. The battery monitor is designed with high-quality LCD, LCD screen with green backlit offers clear and bright display from every angle. Equipped with a PVC film, the surface is waterproof. Long service life button with comfortable hand feeling. Built with buckle, free of screw installation. Battery meter can be applied to portable mobile equipment, electron mobile, balance car, cleaning machine, measuring equipment, etc.

                                                                                                                                                Setting Instruction:

                                                                                                                                                • Long press the Set key, power supply to the product, enter the setup interface
                                                                                                                                                • Press the Set key to select the battery specification (Lead acid battery(P), Lithium battery (L), Fe battery(F))
                                                                                                                                                • Short press the Function key to select the number of battery strings (increasing for set button, decreasing for function button)
                                                                                                                                                • Long press the Function key to set s mode.

                                                                                                                                                Specifications

                                                                                                                                                Product TypeLithium Battery Power Display Meter
                                                                                                                                                MaterialPCB/HTN
                                                                                                                                                Pack voltage display range(V)8-100V
                                                                                                                                                Operating Voltage(V)12-84V
                                                                                                                                                Compatibilityacid battery, lithium battery, iron lithium battery (can be set by yourself.)
                                                                                                                                                DisplayLCD
                                                                                                                                                ColorBlack
                                                                                                                                                Display colorGreen
                                                                                                                                                Dimensional Accuracy (mm)6×3.3×1.4cm / 2.4×1.3×0.6inch
                                                                                                                                                Shipment Weight0.02 kg

                                                                                                                                                Features:

                                                                                                                                                • Double button design, easy to set up, can be set in just a few seconds.
                                                                                                                                                • Equipped with a switch, you can turn off the power, no power consumption after turning off.
                                                                                                                                                • Accurately display the battery power percentage, voltage, and intuitively grasp the battery usage status.
                                                                                                                                                • When the power value is lower than or equal to 20%, the backlight flashes an alarm.
                                                                                                                                                • Compatible with acid battery, lithium battery, iron lithium battery which can be set by yourself
                                                                                                                                                • Manually switch battery percentage/voltage / power off
                                                                                                                                                • Automatic recycling display battery capacity/voltage per 2 seconds (Settable)
                                                                                                                                                • 10s delay auto-off (Settable)
                                                                                                                                                • Double discharge curve selection (Settable

                                                                                                                                                Package Includes:

                                                                                                                                                • 1 x Power Display Meter















                                                                                                                                                Related products

                                                                                                                                                Sold out
                                                                                                                                                Read more
                                                                                                                                                Add to wishlist
                                                                                                                                                Close

                                                                                                                                                LattePanda 7″ 1024 x 600 IPS Display for LattePanda V1

                                                                                                                                                ₹4,576.00 (Exclusive GST Tax 18%)
                                                                                                                                                Add to cart
                                                                                                                                                Add to wishlist
                                                                                                                                                Close

                                                                                                                                                1.8 Inch SPI 128×160 TFT LCD Display Module for Arduino

                                                                                                                                                ₹499.00 (Exclusive GST Tax 18%)
                                                                                                                                                Sold out
                                                                                                                                                Read more
                                                                                                                                                Add to wishlist
                                                                                                                                                Close

                                                                                                                                                12-84V Battery Power Display Meter Lithium Battery Lead-acid Battery Power Display GY-6GS Green 3 Strings Lithium Battery

                                                                                                                                                ₹566.00 (Exclusive GST Tax 18%)
                                                                                                                                                Add to cart
                                                                                                                                                Add to wishlist
                                                                                                                                                Close

                                                                                                                                                7″ inch Official Raspberry Pi Capacitive Touchscreen Display

                                                                                                                                                ₹7,251.00 (Exclusive GST Tax 18%)
                                                                                                                                                Sold out
                                                                                                                                                Read more
                                                                                                                                                Add to wishlist
                                                                                                                                                Close

                                                                                                                                                7 Inch LCD Touch Display With HDMI Driver Board Kit For Raspberry Pi

                                                                                                                                                ₹3,720.00 (Exclusive GST Tax 18%)
                                                                                                                                                Sold out
                                                                                                                                                Read more
                                                                                                                                                Add to wishlist
                                                                                                                                                Close

                                                                                                                                                Original JHD 20×2 character LCD Display with Yellow Backlight

                                                                                                                                                ₹405.00 (Exclusive GST Tax 18%)
                                                                                                                                                Sold out
                                                                                                                                                Read more
                                                                                                                                                Add to wishlist
                                                                                                                                                Close

                                                                                                                                                Pure ine Wave Inverter Driver Board EGS002 Display Screen

                                                                                                                                                ₹397.00 (Exclusive GST Tax 18%)
                                                                                                                                                Add to cart
                                                                                                                                                Add to wishlist
                                                                                                                                                Close

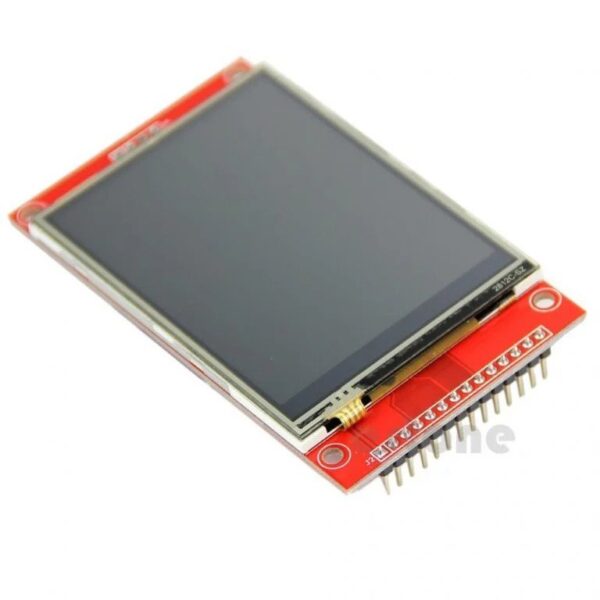

                                                                                                                                                2.8 inch SPI Touch Screen TFT LCD Module

                                                                                                                                                ₹1,186.00 (Exclusive GST Tax 18%)
                                                                                                                                                Add to cart
                                                                                                                                                Add to wishlist
                                                                                                                                                Close

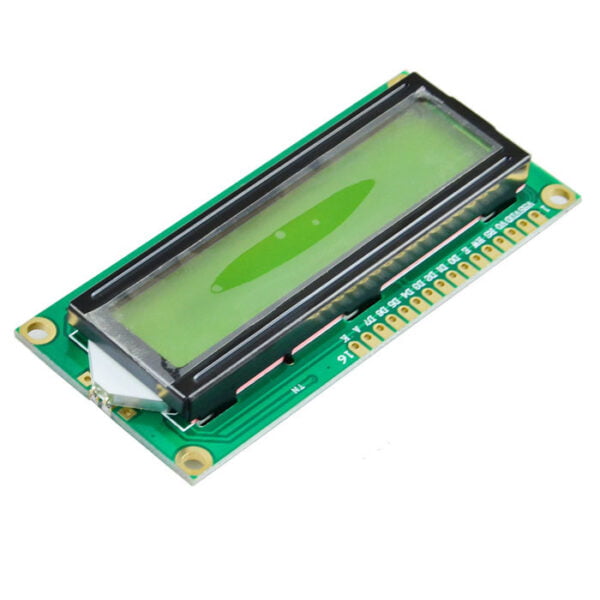

                                                                                                                                                LCD1602 Parallel LCD Display Yellow Backlight

                                                                                                                                                ₹105.00 (Exclusive GST Tax 18%)
                                                                                                                                                Sold out
                                                                                                                                                Read more
                                                                                                                                                Add to wishlist
                                                                                                                                                Close

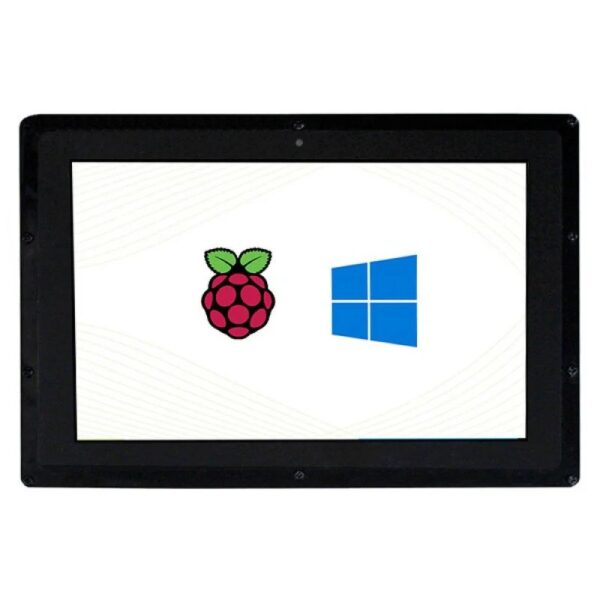

                                                                                                                                                Waveshare 10.1 Inch Capacitive HDMI LCD Display (B) with Case 1280×800
