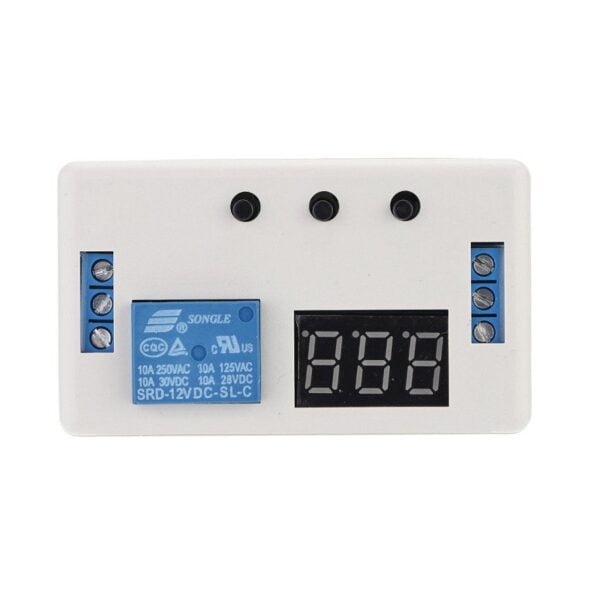

AThis is a relay module with an automatic delay timer. The module consists of a 12V relay along with a three-digit seven-segment display. The module is based on an N76E003AT20 microcontroller.The module has three buttons one to control the function and others to set the delay time.
Specifications
| Timing Range(Selectable) | 0.1~99.9 seconds |
| 1~999 seconds | |
| 1~999 minutes | |
| Operating Voltage (VDC) | 12 |
| Signal Voltage | 4 – 20VDC |
| Output Capacity | Can Control the Load within DC 30V 5A or AC 220V 5A |
| Static Current | 20mA |
| Working Current | 50mA |
| Operating Temperature (°C) | -40 to 85 |
| Length (mm) | 68 |
| Width (mm) | 40 |
| Height (mm) | 25 |
| Weight (gm) | 44 |
| Shipment Weight | 0.047 kg |
Features:
- Increase the power supply anti-reverse function.
- The use of optoisolated input and output enhanced anti-jamming capability and consumption.
- The last setting parameters can be memorized after power off.
- A signal terminal voltage signal can be maintained for a long time.
- To ensure stability, industrial grade PCB board.
Package Includes:
- 1 x 12V Relay Module with Automatic Delay Timer
