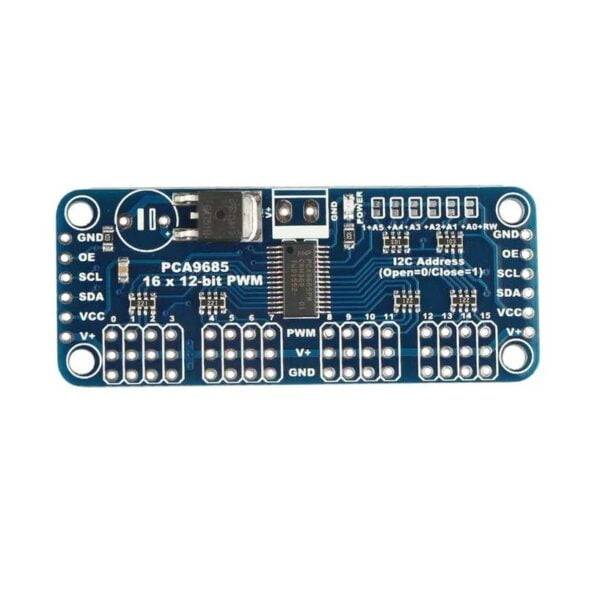

This is 16-Channel 12-bit PWM/Servo Driver – I2C interface – PCA9685. You want to make a cool robot, maybe a hexapod walker, or maybe just a piece of art with a lot of moving parts. Or maybe you want to drive a lot of LEDs with precise PWM output. Then you realize that your microcontroller has a limited number of PWM outputs! What now? You could give up OR you could just get this handy PWM and Servo driver breakout.
Programmable fuzzy group (dim) / Flashing LED brightness independent mixed with 1MHz Fast-mode Plus is compatible with high drive capability has 30mA on SDA I2C bus interface to drive a highly capacitive bus. Each LED output can be achieved from the fully closed (the default) to 4096 (12) between the maximum brightness linear programmable brightness.
Specifications
| No. of channels | 16 |
| No. of Bits | Jan-00 |
| Input supply Voltage (V) | 2.3 ~ 5.5 |
| Operating Temperature (°C) | -40 ~ +85 |
| Oscillator Frequency | 25 MHz |
| Length (mm) | 62.4 |
| Width (mm) | 25.7 |
| Height (mm) | 2 |
| Weight (gm) | 12 |
| Shipment Weight | 0.016 kg |
Features
- Software reset feature (SWRST Call) allows the device via I2C bus reset
- 25MHz internal oscillator requires no external components
- The maximum allowable 50MHz external clock input
- Internal power-on reset
- In the SDA / SCL inputs with noise filter
- Output pin has edge generation rate control
- No glitches on power-up (glitch) output
- Hot-Access
- Low standby current
- Operating voltage range: 2.3V to 5.5V
- 5.5V tolerant inputs
- Can operate at minus 40 degrees Celsius to 85 degrees Celsius environment
- ESD protection exceeds 2000V HBM / JESD22-A114,200V MM / JESD22-A115 and 1000V CDM / JESD22-C101
- JEDEC standard JESD78 lockout exceed 100mA test
Package Includes :
- 1 x 16-Channel 12-bit PWM/Servo Driver – I2C interface – PCA9685 and accessories
