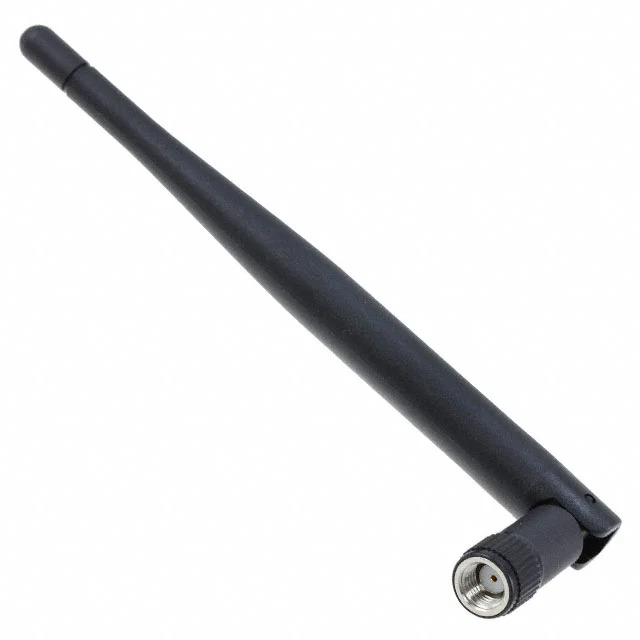

2.4GHz 3.2dBi RP-SMA Male Omni antenna is intended for use for all 2.4GHz applications. The antenna is fitted with an RP-SMA male connector and a blade, made of a flexible material that can be rotated 360 degrees. It is  Suitable for telemetry and WIFI transmissions on lightweight unmanned platforms.
This 2.4GHz 3.2dBi Gain indoor antenna provides high gain and provides tilt and swivel functions for full flexibility. It is fully compatible with Zigbee XBee Pro S2C. This antenna can be used for a variety of other applications within the specified frequency range. When used as the access point, the antenna is ideally located at the center of the coverage area
This antenna mates nicely with the SMA female connector.
Specifications
| Frequency (Center/Band) | 2.4GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz |
| Antenna Type | Whip, Tilt |
| Number of Bands | 1 |
| Antenna Connector | RP SMA Male |
| VSWR | 1.9 |
| Gain | 3.2dBi |
| Applications | WLAN, Zigbee |
| Body Material | Plastic and Rubber |
| Color | Black |
| Height (Max) | 19 cm. |
| Weight(g) | 17 |
| Shipment Weight | 0.02 kg |
| Shipment Dimensions | 9 脳 8 脳 6 cm |
Applications
- Â 802.11b/g/n Wi-Fi Networks.
- Zigbee.
- Bluetooth.
- Streaming Wireless Video.
- RFID.
- Public Hot Spots.
- Schools or Universities.
- Hotel Lobby and Hallways.
- Medical Buildings.
- Any Commerical Office, Retail Store.
