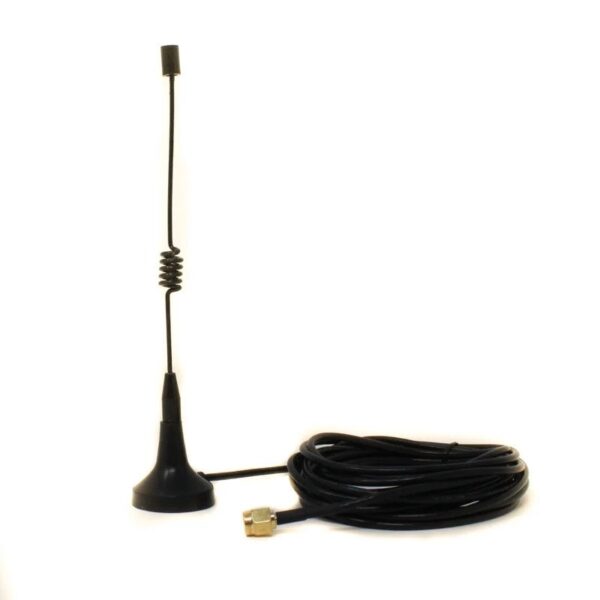

This is Magnetic Mount Antenna having a frequency of 2400 – 2483 MHz and gain of 3dBi. This is very helpful for signal boosting. Magnetic mount antennas are commonly used for car and truck applications. The antenna’s magnetic base sticks securely to the metal of the vehicle. The metal surface of the car acts as a ground plane to bounce the signal. Since magnetic mount antennas require a ground plane, they should be mounted on metal.
Specifications
Frequency (MHz) | 2400 – 2500MHz |
Gain | 3 dBi |
Impedance (Ω) | 50 |
VSWR | < 2.0 |
Polarization | Linear |
Power Handling (W) | 10 |
HPBW | H: 3600; V: 400 |
Operational Temperature | -30° to 60° C |
Humidity | 5 – 95% |
Housing | Aluminum- Commercial Grade |
Dimension (mm) | 50 x φ32 |
Weight( g ) | 50 |
Cable Length (Meter) | 3 |
Shipment Weight | 0.055 kg |
Features:
- Compact Size
- Low Cost
- Anodized Aluminium
Package Includes:
- 1 x 2400 – 2483 MHz 3dBi Magnetic Mount Antenna
