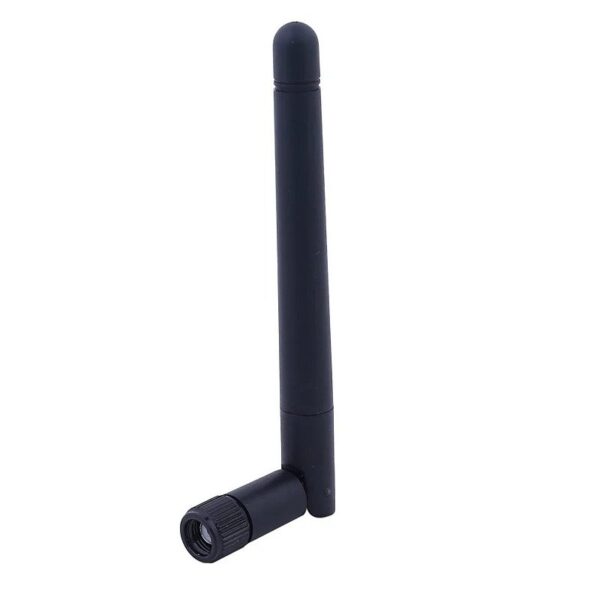

This is Rubber Duck Antenna with Right Angle foldable Connector having a frequency of 2400-2483 MHz and 3dBi Gain.
Application: WiFi, Bluetooth/ Zigbee,5G , ISM
Specification
| Model Number | LWC-2400-5500-RD-RA-RPSMAPLUG-0305 |
| Frequency (MHz) | 2400 – 2483 MHz & 5125 – 5875 MHz |
| Gain | 3 dBi |
| Impedance(Ω) | 50 |
| VSWR | < 2.0 |
| Polarization | Vertical |
| Power Handling (W) | 10 |
| HPBW | H: 3600 ; V: 300 / 400 |
| Connector | RP-SMA Plug |
| Operational Temperature | -30° to 60° C |
| Humidity | 5 – 75% |
| Housing | Plastic / Black |
| Dimension (mm) | 110 x φ10 mm |
| Weight(g) | 50 |
| Shipment Weight | 0.055 kg |
Features:
- Compact Size
- Low Cost
Package Includes:
- 1 x 2400-2483 MHz/3dBi Gain Rubber Duck Antenna
