This 5V DC 28BYJ-48 Stepper Motor is small, inexpensive and high-quality geared step motor. The 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a widely popular combination of the stepper motor and stepper driver, because of the stability and reliability of the system.
Thia 28BYJ-28 stepper motor is imported from one of our trusted suppliers and the supplier has guaranteed for the quality of these compact stepper motors.
Specifications
| Model | 28BYJ-48 |
| Rated Voltage(V) | 5 |
| Rated Current (mA) | 500 mA |
| Step Angle | 5.625°/64 |
| Reduction ratio | 64:01:00 |
| Resistance (Ω) | 50 |
| In-Traction Frequency(Hz) | >600 Hz |
| Out-Traction Frequency(Hz) | >1000 Hz |
| In-traction Torque(mN-m) | 34.3 |
| Self-positioning Torque(mN-m) | 34.3 |
| Friction Torque(gf-cm) | 600-1200 |
| Pull in Torque(gf-cm) | 300 |
| Insulation Grade | A |
| Shaft Type | Double D-Type |
| Motor Weight(gm) | 34 |
| Length (mm) | 34 |
| Width (mm) | 18 |
| Height (mm) | 10 |
| Weight (gm) | 34 |
| Shipment Weight | 0.037 kg |
Features :
- Brand new and high-quality product.
- Stepper motor with a standard interface, when used directly pluggable.
- A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work.
- Compact size stepper motor perfect for small robotics applications.
Package Includes :

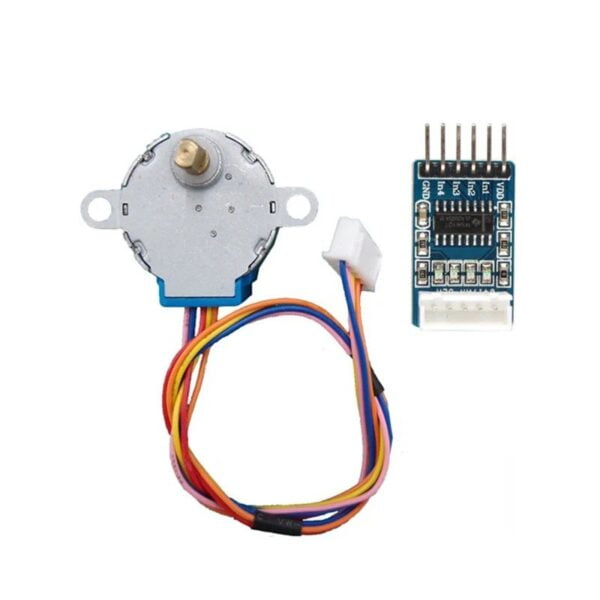

- 1 x 28BYJ-48 Stepper Motor
- 1 x ULN2003 Stepper Motor Driver
