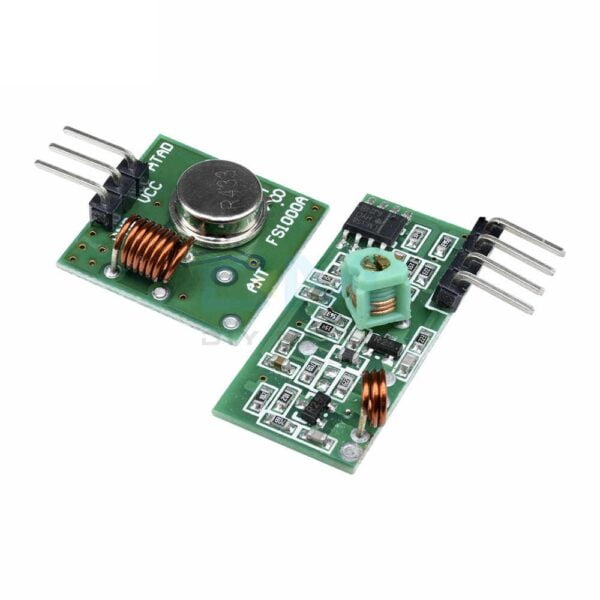

KL-CW11 adopts a superheterodyne circuit. It has high sensitivity, high reliability, and competitive price. It’s widely used in remote garage door openers, auto gates as retract type, brakes, factory automatic, communication and security system, etc.
433 MHz RF receiver module is the most common and cheapest RF receiver for commercial use. This module helps to receiver the 433MHz frequency commonly but it also has a node on it that is changeable by users for different frequencies. The variable node can adjust the frequency from 315MHz to 433MHz.
Specifications
| Maximum Clock Frequency (MHz) | 433 |
| Working Voltage | DC3/5V |
| Working Current | 4mA |
| Modulation Type | ASK/OOK |
| Sensitivity (dBm) | -106 |
| Working Temperature Range (°C) | -10 ~ 60 |
| Length (mm) | 30 |
| Width (mm) | 14 |
| Height (mm) | 12 |
| Weight (gm) | 12 |
| Shipment Weight | 0.015 kg |
Features:
- The Transmitter offers one-way communication through 433.92MHz frequency at a 1Kb data rate
- It operates at 3-12V which is the power operating volts of most of the microcontrollers and boards.
- The module uses the ASK modulation method to transmits the data.
- It is one of the low-cost power effective modules for both commercial and developers.
- 433MHz Transmitter is one of the oldest RF transmitters and it has a lot of applications and examples on the internet which helps to achieve interfacing with almost every application.
Package Includes:
- 1 x 433MHz RF Receiver Module Kl-Cw11
