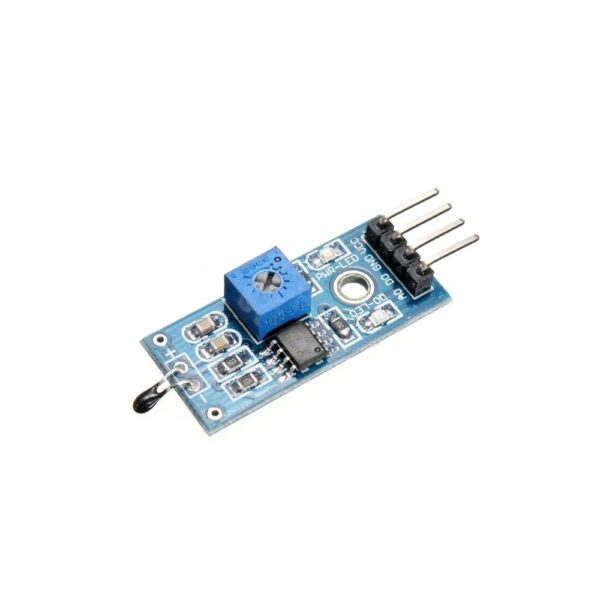

NTC Thermistor temperature sensor module is low cost, small size module. It is very sensitive to ambient temperature. It is generally used to detect the temperature of the surrounding environment. Through potentiometer adjustment, it is possible to change the temperature detection threshold.
DO output can be directly connected to the microcontroller to detect high and low, by detecting temperature changes in the environment.
Specifications
| Operating voltage (v) | 3.3 ~ 5 |
| Temperature sense range (°C) | -25 ~ +80 |
| Output Type | Both Analog and Digital |
| Voltage Comparator | LM393 |
| Length (mm) | 37 |
| Width (mm) | 14 |
| Height (mm) | 7 |
| Weight (gm) | 4 |
| Shipment Weight | 0.005 kg |
Features:
- Using the NTC thermistor sensor, good sensitivity.
- The comparator output signal clean waveform is good, driving ability than 15mA.
- Adjust the temperature distribution bit detection threshold.
- Working voltage 3.3V-5V.
- The output format: Digital switching output (0 and 1).
- With bolt holes for easy installation.
- Using a wide voltage LM393 comparator.
Package Includes:
- 1 x 4PIN NTC Thermistor Temperature Sensor Module.
