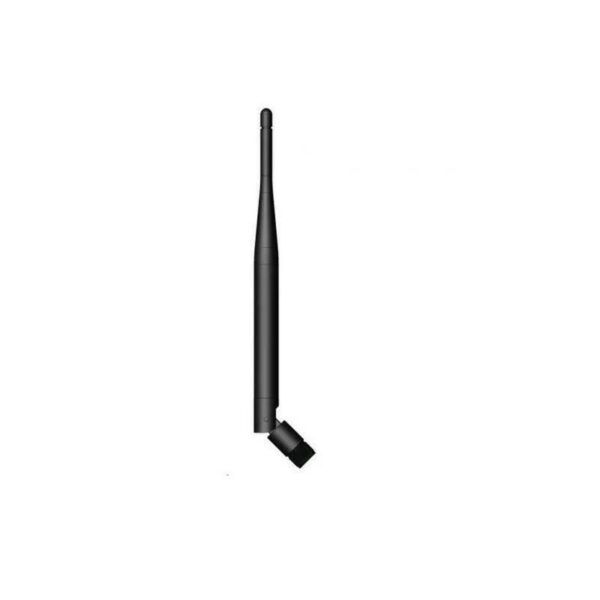

This is 5dBi GSM/3G/4G LTE Indoor Omni Antenna with Black color, SMA Male, and having a frequency of 698-960/1710-2690 MHz.The 5dBi GSM/3G/4G/LTE Indoor Omni is suitable for extending coverage or as a replacement antenna for any RBI or Cellular modem/router. These are also the perfect antenna for building custom 3G/4G/LTE Routers using MikroTik and Sierra Wireless cards
Specifications
| Frequency (MHz) | 698-960MHz & 1710-2690 MHz |
| Gain | 2/5 dBi |
| Impedance (Ω) | 50 |
| VSWR | < 2.0 |
| Polarization | Vertical |
| Power Handling (W) | 50 |
| HPBW | H: 3600 ; V: 300/ 400 |
| Connector | SMA-Plug Right Angle |
| Operational Temperature | -30° to 60° C |
| Humidity | 5 – 95% |
| Dimension (mm) | 195 x φ15 |
| Housing | Plastic / Black |
| Weight(g ) | 50 |
| Shipment Weight | 0.055 kg |
Features:
- Compact Size.
- High quality
- Low cost
- RP-SMA(Plug) connector available.
Package Includes:
- 1 x 698-960 MHz &1710-2690 MHz / 5dBi Gain Dual Band 3G / 4G LTE Antenna
