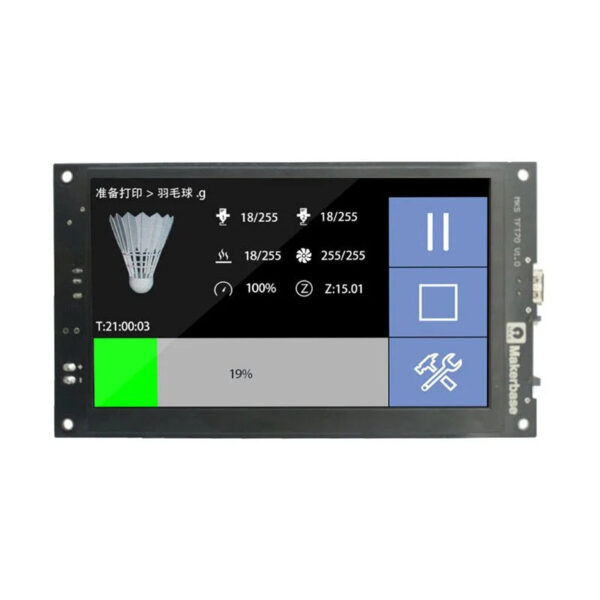

The Makerbase 7 Inch TFT70 V1.1 Full-Color Screen for 3D Printers has a simple operation interface and firmware can be easily upgraded through an SD card. The user interface can be customized and can be switched online in 7 languages, preview Gcode model picture, suitable for building the DIY 3D printer or replacement for the display.
Note: This Display needs an external 12~24V DC Power Supply which does not come with this display. You have to arrange it separately
Features :
- Support online switching in 7 languages
- Support preview file model display, display model picture in print
- 7.0 inch TFT touch screen, simple operation interface, high sensitivity
- Support WIFI function, through mobile phone APP control or computer web control, mobile phone APP support Android, IOS system, support in English and Chinese
- Upgrade and configure firmware through SD card, the operation is simple and convenient
- Boot logo and all buttons and other interfaces can be designed on their own; can customize up to 13 instructions
- Support breakpoint continued to play function, power save function, broken material detection function, after the shutdown function
- Support Main firmware, smoothie ware firmware
Specifications:
- Model: MKS TFT70 V1.1
- Size: 196.7 * 111mm
- Mounting Hole size: 185.7 * 100mm
- Colour touch screen: 7.0-inch touch screen
- Microprocessor: 32-bit STM32 processor
- Update method: SD file update
- Support storage system: SD card, U disk
- Supported file formats: Gcode
- Expandable modules: WIFI module, shutdown module after power off, material detection switch, continuous power off, external card slot.
