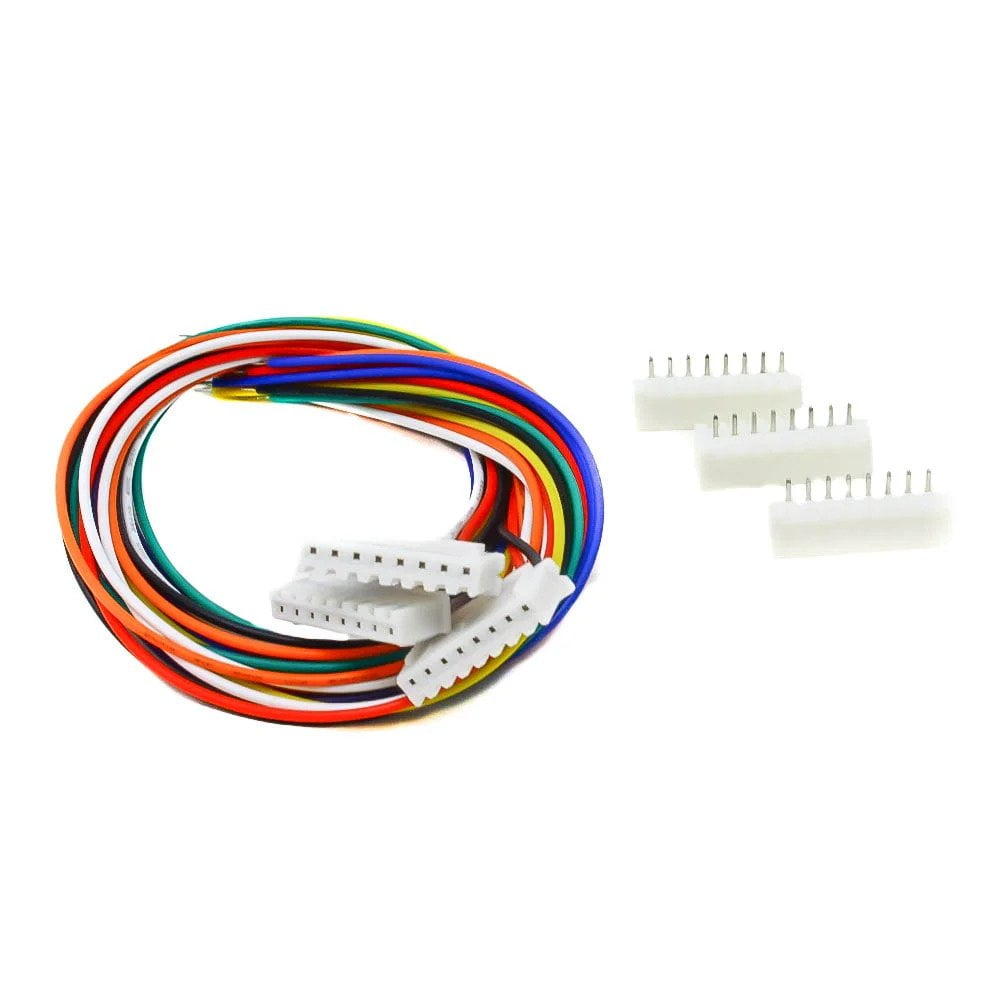

This is an 8 Pin JST XH 2.54mm Pitch Plug and Socket with Cable. It is a multipurpose cable. The length of the cable is 30cm and is a 26 gauge on the AWG scale.
Applications:
- AC power supply to PCs and lab equipment.
- Used in all types of RCs( cars, boats, planes).
- Also used in CCTV connections, pick-ups, etc.
Features:
- Use of electrical fire retardant material
- Solid and durable.
- Safe and easy to install.
- RoHS compliant.
Specifications
No. of Contact Points | 8 |
Connector Type | JST XH |
Contact Material | Phosphor Bronze |
Contact Plating | Nickel |
Metal Connector Size (mm) | 4.5 |
Operating Temperature Range (°C) | -25 to 85 |
Flammability Rating | UL94V-0 |
Color | White |
Cable Length (cm) | 30 |
Connector Dimensions(L x W x H) (mm) | 22 x 5.5 x 7 |
