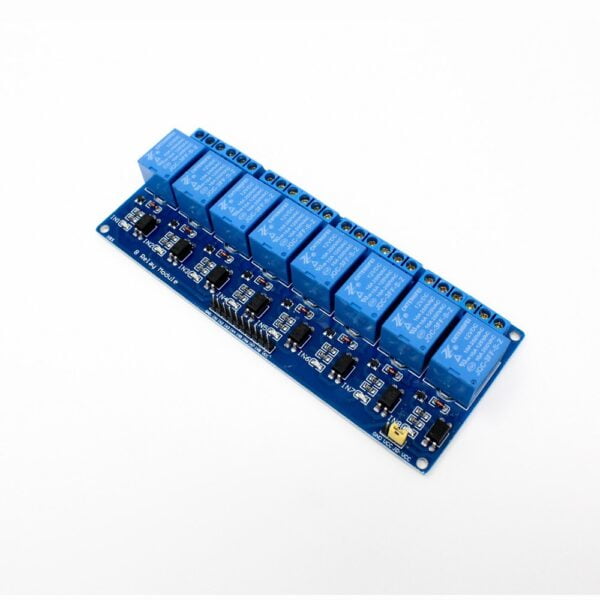

This 8 Road/Channel Relay Module (with light coupling) 12V module meet the safety standard as control areas and load area have the isolation groove. Optical coupling isolation module.
The triggering of 8 Road/Channel Relay Module is reliable, more stable. The double FR–4 circuit board design, high-end SMT process. It has power and relay operation instructions. Relays terminals (C, NC, NO) are accessible through screw terminals which makes wiring up the board very easy.
Specifications
| Channel | 8 |
| Operating Voltage (VDC) | 12 |
| Trigger Voltage (VDC) | 12 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| PCB hole diameter (mm) | 3.1 |
| PCB hole pitch distance (mm) | 132 mm (x-pitch), 50.5 mm (y-pitch) |
| Length (mm) | 138 |
| Width (mm) | 57 |
| Height (mm) | 17 |
| Weight (gm) | 110 |
| Shipment Weight | 0.13 kg |
Features :
- Equipped with high-current relay 10A@250VAC / 10A@30VDC
- It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc
- High-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connection
- Freewheeling diode to protect your microcontroller
- Input Signal Pin connected to Burg stick for easy accessibility
- LED Status indicators to indicate the relay ON/OFF status
- Mounting holes provided
- Signal input with a high-level signal, the common and often start conduction;
- The relay can directly control all kinds of equipment and load;
- One often opened a normally closed contact;
- Blue KF301 terminal line more convenient.
- It is also able to control various appliances and other types of equipment with a large current.
- Red working status indicator lights are conducive to the safe use. Widely used for all MCU control, industrial sector, PLC control, smart home control.
Package includes :
- 1 x 8 Road/Channel Relay Module (with light coupling) 12V
