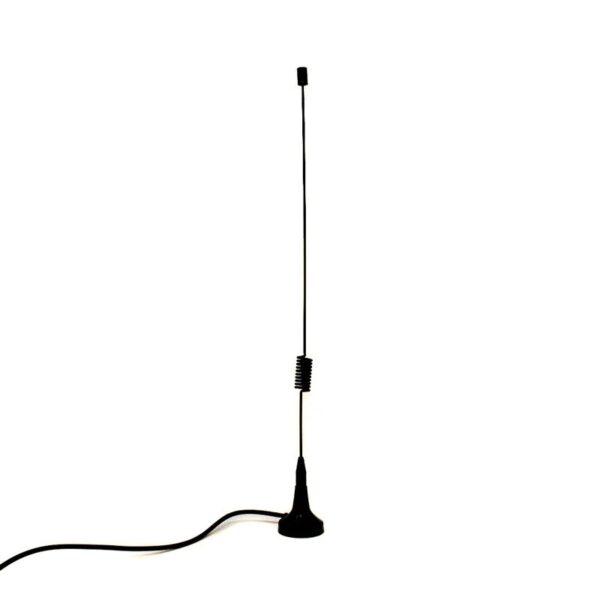

This is Magnetic Dual-Band Mount Antenna having a frequency of 824 – 960 MHz & 1710 – 2170 MHz and gain of 4/6 dBi. This antenna is supported to GSM FCT and other GSM Module/Modems. The biggest advantage to dual-band antennas is their ability to provide a strong, stable wireless connection is often difficult to reach locations. For this reason, they are often used in devices such as cellular or dual-band wireless access points.
Specifications
| Frequency (MHz) | 824 – 960 MHz & 1710 – 2170 MHz |
| Gain | 4 / 6 dBi |
| Impedance (Ω) | 50 |
| VSWR | < 2.0 |
| Polarization | Linear |
| Power Handling (W) | 10 |
| HPBW | H: 3600 ; V: 300 / 400 |
| Cable | RG174 |
| Connector | SMA Male Plug |
| Operational Temperature | -30° to 60° C |
| Humidity | 5 – 75% |
| Housing | Carbon Steel Powder Coated |
| Dimension (mm) | 280 x φ27 |
| Weight | 100g |
| Cable Length (Meter) | 3 |
| Shipment Weight | 0.12 kg |
Features:
- Compact Size
- Low Cost
- SMA Male
- Any cable length (suggested <5m)
Package Includes:
- 1 x 824 – 960 MHz & 1710 – 2170 MHz Dual-Band 4/6 dBi Magnetic Mount Antenna
