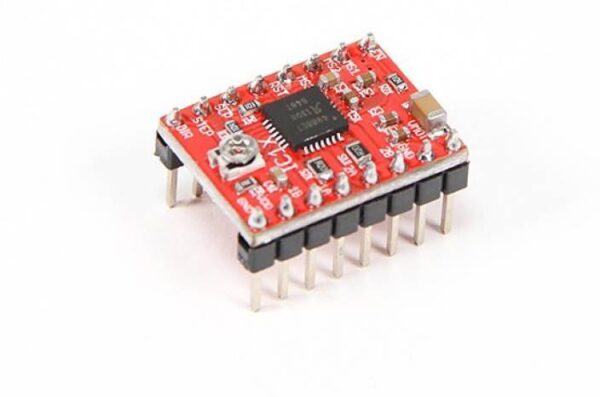

The A4988 driver Stepper Motor Driver is a complete micro-stepping motor driver with built-in converter, easy to operate. It operates from 8 V to 35 V and can deliver up to approximately 1 A per phase without a heat sink or forced air flow (it is rated for 2 A per coil with sufficient additional cooling).
A4988 driver Stepper Motor Driver includes a fixed off-time current regulator, the regulator can be in slow or mixed decay mode. The converter is the key to the easy implementation of the A4988.
Specifications
| Input Supply Voltage (VDC) | 8 ~ 35 |
| Operating Current (A) | 1.0A(No Heatsink ), 2.0A (with Heat-Sinking) |
| Logic Input (V) | 3 ~ 5.5 |
| Five Step Mode | full, 1/2, 1/4, 1/8 and 1/16. |
| Shipment Weight | 0.08 kg |
Features :
- Automatic current decay mode detection/choice.
- Mixed with slow current decay mode.
- The low power dissipation of synchronous rectifier.
- Internal UVLO(ultra voltage lockout).
- Crossover current protection.
- Thermal shutdown circuit.
- Ground fault protection.
- Loading and short circuit protection.
- The optional five-step mode: full, 1/2, 1/4, 1/8 and 1/16.
Package Includes :
- 1 x A4988 Stepper Motor Driver- Normal quality.
- 1 x Heat sink.
