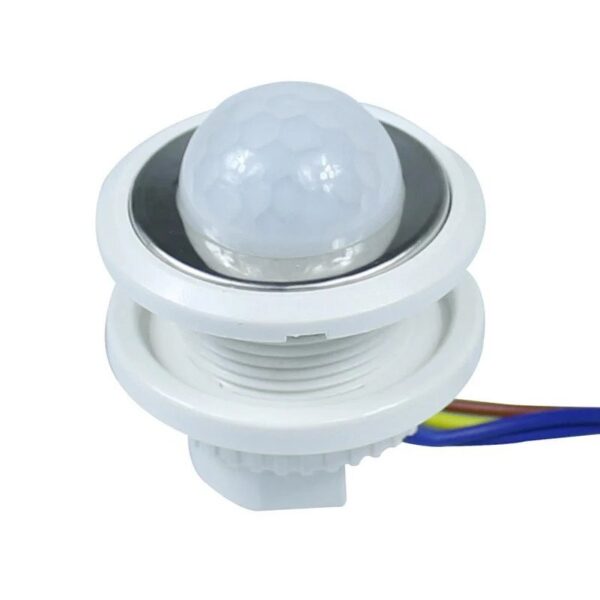

This is a PIR detection-based Infrared Motion Sensor this switch can detect the human body’s infrared, and use it to control the load. The PIR has adjustable time delay according to actual needs.
Specifications
| Type | PIR Switch |
| Available Fixed Time Delay | 15 Sec, 45 Sec, and 5 Min. |
| Color | White |
| Working Voltage | AC110-240V |
| Working Frequency | 50/60Hz |
| Output Power | ≥40W |
| Photosensing Setting | ≤2Lux, ≤25Lux, 2000Lux |
| Sensing Distance | 4-6m |
| Angle Coverage | 110 degrees |
| Standby Power Consumption | <0.1W |
| Fitting Diameter (mm) | 40 |
| Length (mm) | 45 |
| Width (mm) | 40 |
| Height (mm) | 25 |
| Weight (gm) | 50 |
| Shipment Weight | 0.05 kg |
Features:
- Adjust the light to soft and stable, with no flickering.
- You can conveniently let the light auto on/off. The switch can detect the human body’s infrared, and use infrared to control the load.
- Users according to actual needs, the human body sensors installed in the appropriate environment.
- Applications: energy-saving lamps, LED lamps, fluorescent lamps, and other kinds of loads.
- Easy to install and simple to use.
Package Includes:
- 1 x 40mm LED PIR Detector Infrared Motion Sensor Switch
