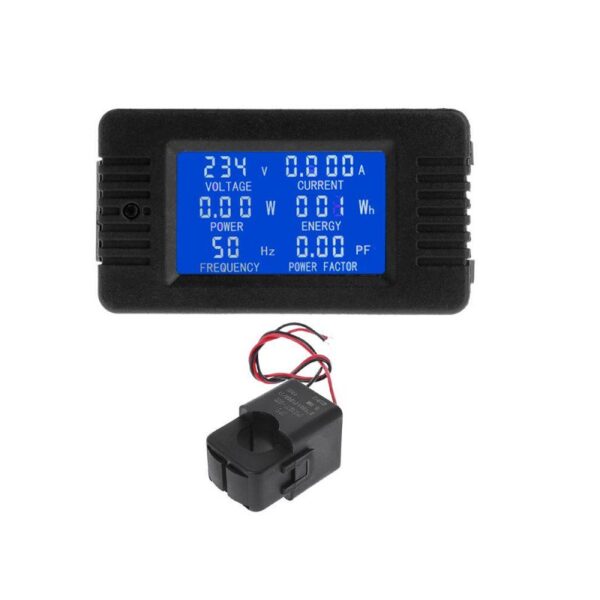

This is a digital display, which also monitors the power consumption in the house. This display also acts as a monitoring system for parameters like voltage, current, active power, energy, frequency, power factor, etc. The display comes with a high-quality current sensor with the help of which you can easily measure the current flowing through the wire by using the noncontact method, which means there is no physical contact between the wire and the meter.
Specifications
| Rated Power (W) | 22000 |
| Rated Current(A) | 100 |
| Operating Frequency (Hz) | 45 – 55 |
| Accuracy | 1.0 grade |
| Length (mm) | 100 |
| Width (mm) | 60 |
| Height (mm) | 30 |
| Weight (gm) | 125 |
| Shipment Weight | 0.13 kg |
Features:
- Electrical parameter measurement function (voltage, current, active power, energy, frequency, power factor)
- Overload alarm function (over power alarm threshold, backlight, and power flashing to alarm).
- Power alarm threshold preset function (can set power alarm threshold).
- The energy can be reset using the key.
- Store data when power off.
Package Includes:
- 1 x AC Power Monitoring Digital Display
- 1 x User Manual
