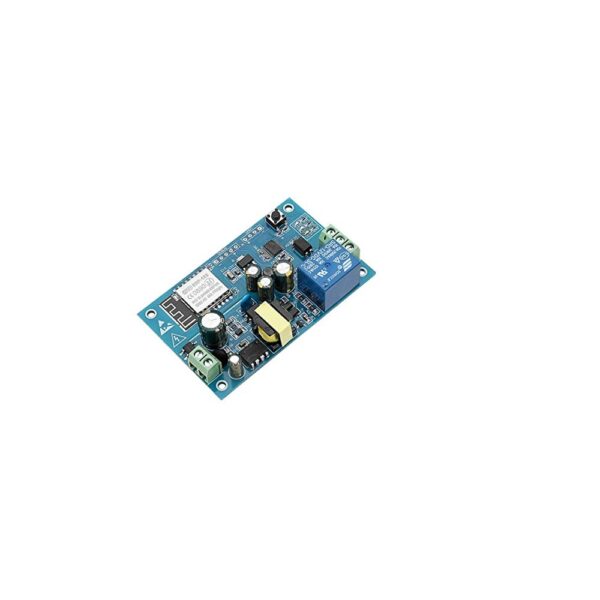

The ESP8266 single-channel relay development board is equipped with an ESP-12F WiFi module, I/OD all leads, and supports AC90-250V/DC7-12V/USB 5V and other power supply methods. Provide Ardu jino development environment reference code, suitable for ESP8266 secondary development learning, smart home wireless control, and other occasions
Specification
| Model | LC-Relay-ESP12-1R-MV |
| Operating Voltage | AC90-250V/DC7-12V/USB5V |
| WIFI IC | ESP8266 |
| Communication Protocol | UART |
| Load Voltage | AC 250V or DC 30V(Max) |
| Load Current | 10A(Max) |
| Work Temperature | -25℃~85℃ |
| Work Humidity | 5%~95%RH |
| Dimensions (L x W x H)mm | 80 x 50 x 19 |
| Shipment Weight | 0.035 kg |
Features:
- Onboard mature and stable ESP-12F WiFi module, large capacity 4M Byte Flash
- The I/O port of the WiFi module and the UART program download port are all led out to facilitate secondary development
- Onboard AC-DC switching power supply module, power supply mode supports AC90-250V/DC7-12V/USB5V
- Onboard WiFi module RST reset button
- ESP-12F supports the use of Eclipse/Arduino IDE and other development tools, and provides reference programs under the Arduino development environment;
- Onboard 1 way 5V relay, output switch signal, suitable for controlling load within AC 250V/DC30V
- Onboard power indicator, 1 programmable LED, and relay indicator
Package Includes:
- 1 x ESP8266 Wireless WIFI 1 Channel Module Relay
