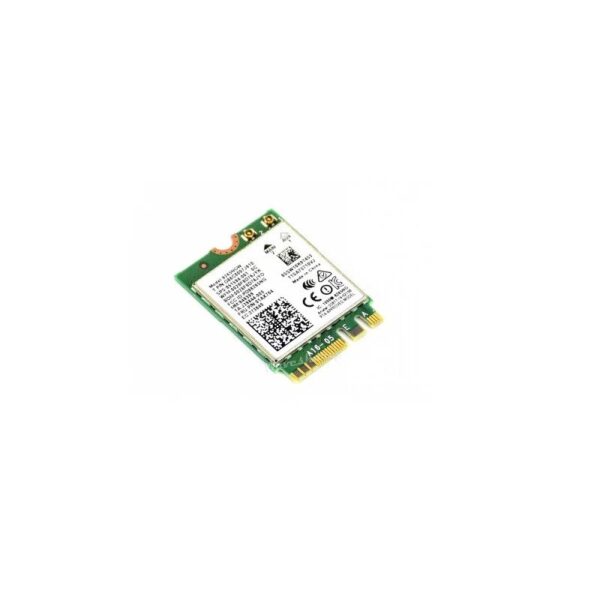

This is an AC8265 Wireless NIC for Jetson Nano, WiFi / Bluetooth. The module is used to receive signals through NIC.NIC allows both wired and wireless communications. NIC allows communications between computers connected via local area network (LAN) as well as communications over the large-scale network through Internet Protocol (IP). This module contains two antennas that are used to attract the signals.
How to use:
- Remove the two screws on Jetson Nano, detach the Jetson Nano
- Connect the extension cable to Wireless-AC8265 on the IPEX connector, tighten the nut and washer to each SMA connector
- Remove the NIC screw onboard, insert the Wireless-AC8265 into the M.2 socket, screw it tightly
- Insert the Jetson Nano into the socket and screw it again, connect the antennas
Specification
| Chipset | Intel 8265AC |
| Band-Range (GHz) | 2.4/5 |
| WIFI | 802.11 b/g/n |
| Bluetooth Version | 4.2 |
| Supported OS | Linux, Windows 10/8.1/8/7 |
| Dimensions in mm (LxWxH) | 22x30x2.4 |
| Weight (gm) | 41 |
| Shipment Weight | 0.102 kg |
Features and Specifications:
- Chip: Intel 8265AC
- Bands: 2.4GHz / 5GHz
- Speed: 300Mbps / 867Mbps
- WiFi protocol: 802.11ac
- Bluetooth version: 4.2
- NIC interface: NGFF (M.2)
- Antenna interface: IPEX connector
- Antenna Dimensions (L x D) : 190 x 13 mm
- Supported OS: Linux, Windows 10/8.1/8/7
Package Includes:
- 1 x AC8265 Wireless NIC for Jetson Nano, WiFi / Bluetooth
- 2 x Connecting Antennas : 190 x 13 (L x D) mm
