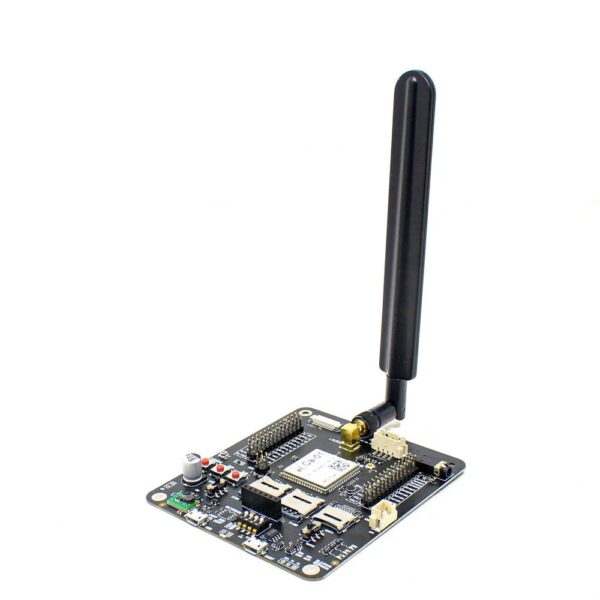

Ca-01 is an ultra-small package LTE Cat.1 bis module launched by Ai-Thinker. It adopts Unigroup’s UIS8910 platform and supports LTE 3GPP Rel.13 technology. It is a 4G full Netcom module that can adapt to different operators and products to ensure maximum flexibility in product design.
Specifications
| Model | CA-01 Dev. Board |
| Brand | Ai-Thinker |
| Frequency band | LTE-TDD: B34/B38/B39/B40/B41; LTE-FDD: B1/B3/B5/B8 |
| Support | VoLTE; Support Camera; Support analog voice |
| Working temperature | -40℃~+85℃ |
| Working voltage | 3.3V-4.3V, 3.8V power supply is recommended |
| Power consumption | 20uA@shutdown, 3mA@sleep, typical value |
| Data LTE-TDD | uplink and downlink ratio 2 [maximum 8Mbps(DL)/maximum 2Mbps(UL)]; uplink and downlink ratio 1[maximum 6Mbps(DL)/maximum 4Mbps(UL)] |
| Data: LTE-FDD | Maximum 10Mbps (DL)/ Maximum 5Mbps (UL) |
| Shipment Weight | 0.067 kg |
Features:
- Support Cat.1
- Support VoLTE
- Support 1.4 ~ 20MHz RF bandwidth
- LTE-TDD: uplink and downlink configuration 2
- Maximum upstream rate 2Mbps, maximum downstream rate 8Mbps
- LTE-TDD: uplink and downlink configuration 1
- Maximum upstream rate 4Mbps, maximum downstream rate 6Mbps
- Network protocol features
- Support: TCP/UDP/PPP/FTP/HTTP/NITZCMUXINDIS/NTP/ HTTPS/
- In development: SMTP/SMTPS/MMS/DTMF
- USIM card interface
- Support USIM / SIM card: 1.8V and 3V
- USB interface
- Compatible with USB2.0 (only supports slave mode), the data transfer rate is up to 480Mbps
- Used for AT commands, data transmission, software debugging, software upgrade
- USB virtual serial port driver: support USB driver under Windows 7 / 8.1 / 10, Linux 2.6.x / 3.x / 4.1, Android 4.x / 5.x /6.x17.x and other operating systems
- Serial port
Interface:
- 1 USB 2.0 high speed interface (up to 480Mbps)
- 1.8V/3.0V (U) SIM card interface
- 1 NETLIGHT interface (NET_STATUS and NET_MODE)
- 2 analog voice input
- 2 analog voice output
- 3 UART interfaces
- 1 SPI interface
- 1 SPI LCD interface
- 1 SPI Camera interface
- 1 MMC interface
- PWRKEY (active low)
- Support 6*6 array keyboard
- 2 ADC interfaces
- Electrical parameters-Output power: LTE-TDD: Class3(23dBm+1/-3dB); LTE-FDD: Class3(23dBm+-2dB);
- General features: 3GPP E-UTRA Release 13;
- Bandwidth: 1.4/3/5/10/15/20MHz;
- Package: stamp hole + LGA;
- Weight: about 2.6g;
Package Includes:
- 1 x Ai-Thinker CA-01 Dev. Board
