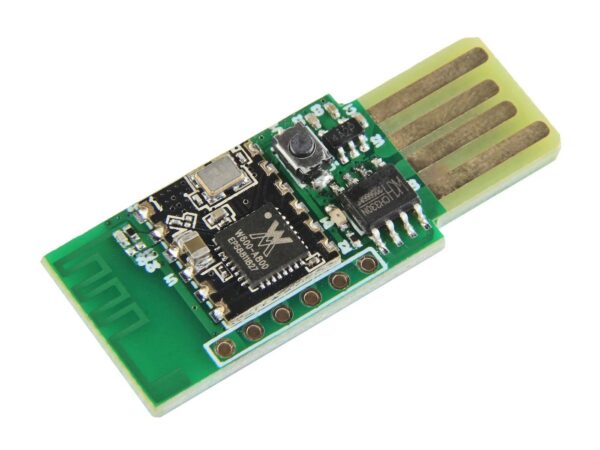

The Air602 WiFi Development Board is based on the Air602 Wi-Fi module and an integrated USB interface and Antenna. If you plug this board into your computer, it will be recognized as a Ports (COM & LPT), so that you can code it with Serial port tool. This module support IEEE802.11b/g/n and AT command.
Specifications
Operating voltage (VDC) | 3.3 |
WiFi Mode | IEEE802.11b/g/n |
Frequency Range (GHz) | 2.4 ~ 2.4835 |
Modulation | DSSS, OFDM, DBPSK, DQPSK, CCK, QAM16/64 |
Interface | UART, SPI, GPIO |
Network Type | STA/AP/AP+STA/Wi-Fi Direct |
Operating current (mA) | 110mA(PS Mode 35mA,DTIM = 1 |
Operating Temperature (°C) | ‐40 ~ +85 |
Storage Temperature (°C) | ‐40 ~ +125 |
Length (mm) | 38.5 |
Width (mm) | 16 |
Height (mm) | 3.5 |
Weight (gm) | 3 |
Shipment Weight | 0.005 kg |
Package Includes:
- 1 x Air602 WiFi Development Board.
