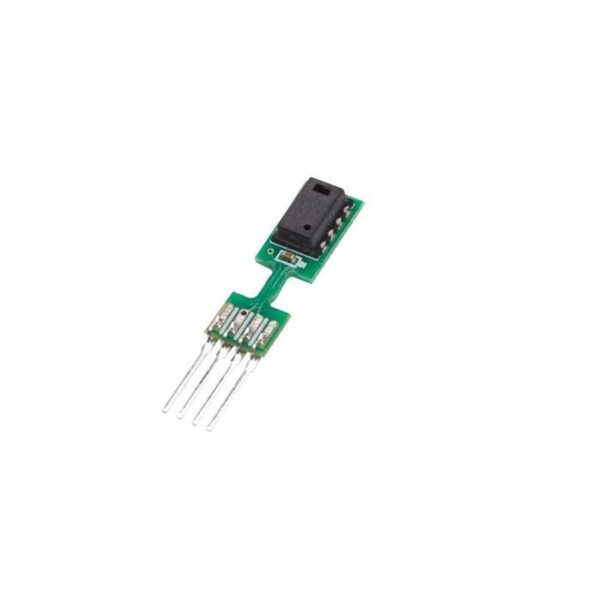

Individually calibrated and tested, Amphenol CC2D25S Advanced Sensors Humidity/temp Sensor performs ±2% from 20% to 80%RH (±3% over the entire humidity range), and yet is simple and ready to use without further calibration or temperature compensation.
ChipCap 2-SIP offers another sensible sensing solution for excellent reliability, high accuracy, and cost-effective sensing applications
Specification
| Product Type | Advanced Humidity/temp Sensor |
| Sensor Output | Digital |
| Max Supply Voltage (V) | 5V |
| Sensor Terminals | Through Hole |
| Response Time | 7s |
| Operating Temperature (°C) | -40 – 125℃ |
| Sensing Accuracy | 0.02 |
| Humidity Range | 0% to 100% Relative Humidity |
| Capacitance | 0.1µF |
| Shipment Weight | 0.015 kg |
Features:
- Fully Calibrated & Temperature Compensated
- Digital (I2 C) Output
- Low Current Consumption
- SIP (Single-In-line-Package)
- Reliable in Harsh Environment
- Eliminates the reconditioning procedure needed for surface mount RH sensors
- Field replaceable.
- Allows better air circulation and response time
Package Includes:
- 1 x Amphenol CC2D25S Advanced Humidity/temp Sensor, 2%, 5v
