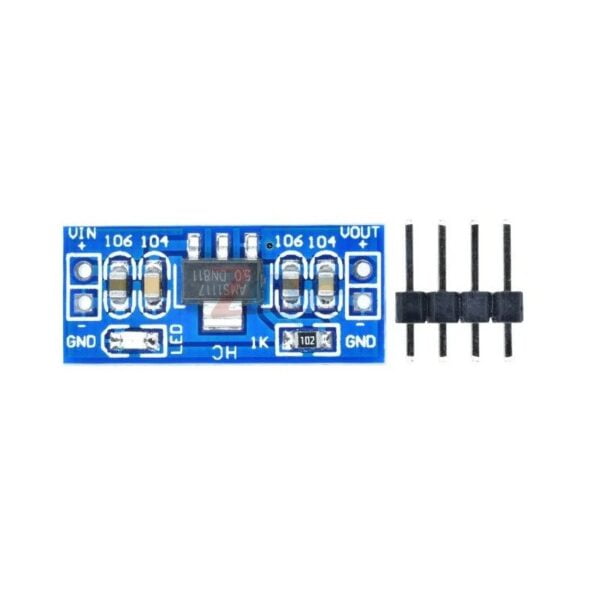

This power supply module is based on the AMS1117 5V regulator. It is capable of regulating a wide range of input voltage (6.0 to 12V) down to a fixed 5V output at up to 1A Standard 0.1″ header pins provide a means of connecting to its input and output terminals.
Specifications
| IC Chip | AMS1117 |
| Input Voltage (V) | 6.5 to 12 |
| Output Voltage(V) | 5 |
| Max. Output Current (A) | 80% |
| Length (mm) | 26 |
| Width (mm) | 12 |
| Height (mm) | 2 |
| Weight (gm) | 0.6 |
| Shipment Weight | 0.085 kg |
Features :
- Onboard AMS1117 chip.
- Onboard power indicator to indicate power is turned on: Red LED.
- Output voltage interface, connection to facilitate the experimental.
- Small Compact Size, 4Pin Type, Breadboard Friendly.
- 2P single row pin input and output for easy connection
- Dual-panel design, the layout is nice
Package Includes :
1 x AMS1117 5V Step-Down Power Supply Module (Unsoldered).
