IMX477 camera modules have high resolution. But traditional IMX477 cameras generally have larger camera boards and larger lenses. In order to make the IMX477 camera more convenient and space-saving, we have developed this camera based on the 477M image sensor. The 477M and IMX477 have exactly the same optical size and pixels, and the frame rate at different resolutions is also the same. We equipped a 1/2.3 inch 6p lens on this basis. The camera board is about 24x25mm, which makes it more flexible and convenient to move and transfer. Through the specially equipped lens and 477M sensor, we have achieved the compatibility of high pixels and tiny sizes.
Applications:
- DSLR Camera Control
- Time-lapse Machine
- Security System
- Smart Video Doorbell
- Face Recognition
- Instant (Polaroid-Style) Camera, etc.
Specifications:
- Image Sensor Sony 12.3MP IMX477
- Optical Format 1/2.3″ (diagonal 7.857mm)
- Resolution 12.3MP
- Active Pixels 4056(H) x 3040(V)
- Pixel Size 1.55um x 1.55um
- Frame Rates 4056×3040@30fps, 1920×1080@60fps, 480×640@90fps
- Shutter Type Rolling Shutter
- Interface 2-lane MIPI CSI-2
- Lens Type 1/2.3inch 6p
- Lens Focus Length 2.75mm
- F.NO 2.8/±5%
- Distortion <-14.6%
- Focus Type Fixed Focus
- Field of View(FoV) 120°(D)
- IR Sensitivity Integral IR cut filter, visible light only
- Board Size 24 x 25mm
- Peak Current 300mA
Features:
- Wide Angle: 120°(DFOV)
- Check Nvidia Jetson version: B0303N
- High Resolution: Based on 12.3MP 477M image sensor
- Mini Size: 24mm x 25mm camera board, V1/V2 size
- Native to Raspberry Pi: No need to install an additional driver
- Wide Compatibility: Compatible with all Raspberry Pi boards
Package Includes:

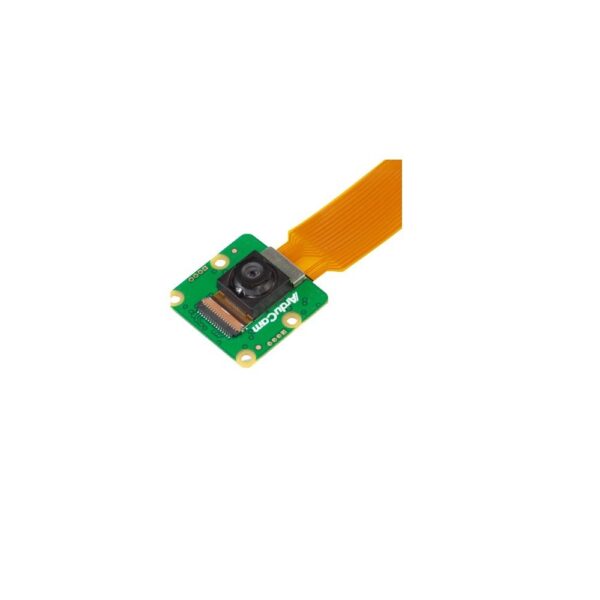

- 1 x 12.3MP 477M Camera Module for Raspberry Pi
- 1 x 150mm 15pin to 22pin flex cable
