The camera uses the Sony Low Light STARVIS IMX327 sensor which is a diagonal 6.46 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 2.13 million effective pixels. The chip uses analog 2.9 V, digital 1.2 V, and interface 1.8 V. This highly sensitive low-light camera can capture extremely sharp images with minimal noise at extremely low light conditions. It features low power consumption, high functionality, high sensitivity, low dark current and no smear. The sensor applies R, G, and B primary color mosaic filters, as well as a variable electronic shutter.
APPLICATIONS:
- Surveillance cameras
- FA cameras
- Industrial cameras
- Autonomous mobile robots, UGV/UAV, ADAS, etc.
Specifications:
- Sensor: SONY STARVIS IMX327
- Optical Size: Type 1/2.8” (Diagonal 6.46 mm)
- Pixel Size: 2.9μm×2.9μm
- Shutter Type: Rolling Shutter
- Max Sensor Resolution: 1920 x 1080
- Color Filter Array: Bayer RGB
- Resolution and Frame Rate: RAW10: 1920×1080@46fps;1280×720@90fps, RAW12:1920×1080@46fps;1280×720@90fps
- Supported Platform: Pi 4/3/Zero/CM3/CM4
- Output Format: RAW10/RAW12
- Focus Type: Manual
- Lens Mount: M12 Mount
- F.NO: 1.6±10%
- MOD: 2.0
- Effective Focal Length: 4.3±5%mm
- Back Focal Length: 5.43±0.2mm
- FOV(Field of View): 80°H
- IR Sensitivity: Motorized IR-CUT
- Camera Board Size: 38mmx38mm
Features:
- Input frequency: 74.25 MHz / 37.125 MHz
- Pixels: Approx. 1920 (H) × 1080 (V) 2.07 million pixels
- Maximum frame rate in Full HD 1080p mode: 30 fps
- Wide Dynamic Range (WDR) function: Multiple exposure WDR, Digital Overlay WDR
- 10-bit/12-bit A/D converter
- CSI-2 serial data output: 2 Lane, RAW10 / RAW12 output
Package Includes:

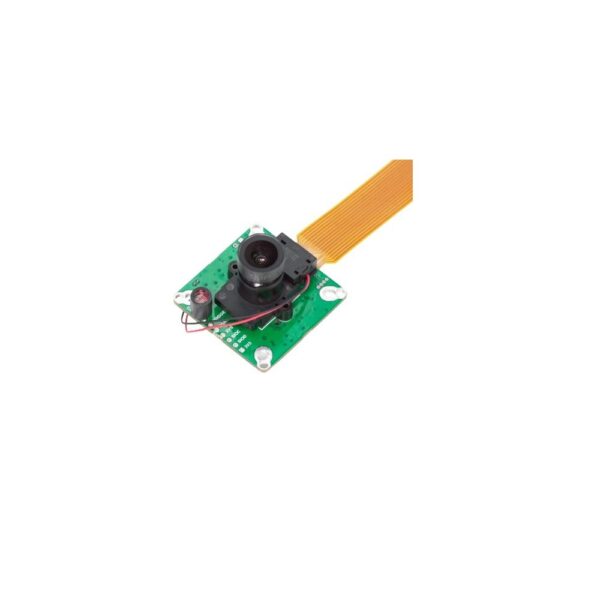

- 1 x IMX327 Motorized IR-CUT Camera Module
- 1 x 150mm 15pin to 22pin flex cable
