Raspberry Pi Zero compatible camera modules, the Arducam team now released another add-on spy camera module that is fully compatible with Raspberry Pi Zero and Pi compute module.

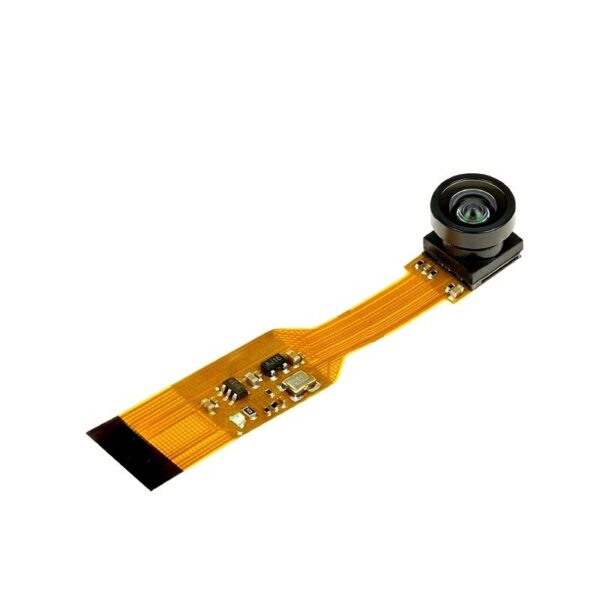

The board itself is tiny, at around 60mm x 11.5mm. The neck width of the camera module is 6mm, this highlight making it perfect for an endoscope, spy surveillance, or other applications where size and image quality are important. It connects to Raspberry Pi Zero by way of a short ribbon cable. The camera is connected to the BCM2835 processor on the Pi Zero via the CSI bus, a higher bandwidth link that carries pixel data from the camera back to the processor.
This bus travels along the ribbon cable that attaches the camera board to the Pi. The sensor itself has a native resolution of 5 megapixels and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30. 720p60 and 640x480p60/90 video. It attaches to Raspberry Pi Zero by way of the small sockets on the board’s upper surface.
Specifications
Operating Voltage (VDC) | 5 |
Resolution | 5 MP |
Pixel Resolution | 2592 x 1944 |
Lense Viewing Angle (FOV) | 160° |
Length (mm) | 50 |
Width (mm) | 15 |
Height (mm) | 5 |
Weight (gm) | 4 |
Shipment Weight | 0.005 kg |
Features:
- The angle of View: 64 x 48 degrees
- Full-frame SLR lens equivalent: 35 mm
- Fixed Focus: 1 m to infinity
- Max frame rate: 30fps
- Size: 300 x 16 mm flex cable, neck wide is 6mm
- 15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector
Package Including:
- 1 x Arducam 5MP OV5647 Wide Angle Spy Camera 160deg
