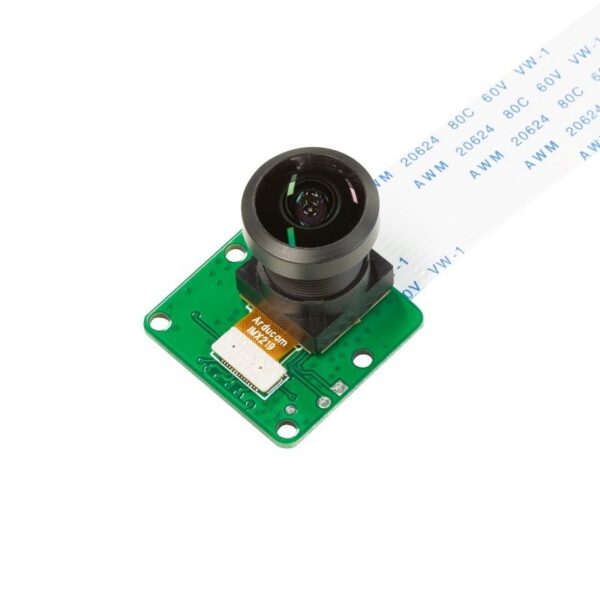

This Arducam IMX219 camera module is mainly designed for NVIDIA Jetson Nano and also can be used on other hardware like ARM, DSP, FPGA, etc. The highlight of this camera is its wide field of view.
More Than HD this camera adopts a 1/4” 8 Megapixel IMX219 sensor for sharp image, Max. still, the resolution is 3280 x 2464 pixels. With the wider angle of view, it has 220°(H) wide-angle M12 Lens, which provides a much wider Field of View compared to the stock lens on the V2 camera module.
It comes with Frame Rates: 21fps@8MP, 60fps@1080P, 120fps@720P. and IR Sensitivity: Integral IR filter, visible light only; Focal Length: 0.76 mm
NOTE: This camera is mainly designed for the Jetson Nano. It can also be used on the Raspberry Pi Compute Module (like CM3, CM3+), but is not compatible with standard Raspberry Pi models (like Raspberry Pi 3/3B+/4).
Specification
| Sensor | Sony 8MP IMX219 |
| Optical Format | 1/4 inch |
| Frame Rate | 30fps@8MP |
| 60fps@1080p | |
| 180fps@720p | |
| Data Format | RAW8/RAW10 |
| EFL | 0.76mm |
| F.NO | 2.1 |
| View Angle | 220(H) |
| Interface | MIPI CSI-2 2-lane/4-lane |
| IR Sensitivity | Visible light, Integral IR Filter |
| Length (mm) | 36 |
| Width (mm) | 36 |
| Height (mm) | 15 |
| Weight (gm) | 15 |
| Shipment Weight | 0.04 kg |
Specifications and Features:
- Sony 8MP IMX219 Sensor
- Optical Format: 1/4 inch
- Frame Rate: 30fps@8MP, 60fps@1080p, 120fps@720p
- Data Format: RAW8/RAW10
- Lens part number: M32076M20
- EFL: 0.76mm
- F.NO: 2.1
- Focus Type: Fixed Focus
- View Angle: 220(H)
- Interface: MIPI CSI-2 2-lane/4-lane
- IR Sensitivity: Integral IR Filter, visible light only
Package Includes:
- 1 x Arducam IMX219 Camera Module with a fisheye lens for Jason Nano and Raspberry Pi Compute Module
- 1 x 15cm 15pin FPC cable
- 1 x 30cm 15pin-22pin FPC cable
