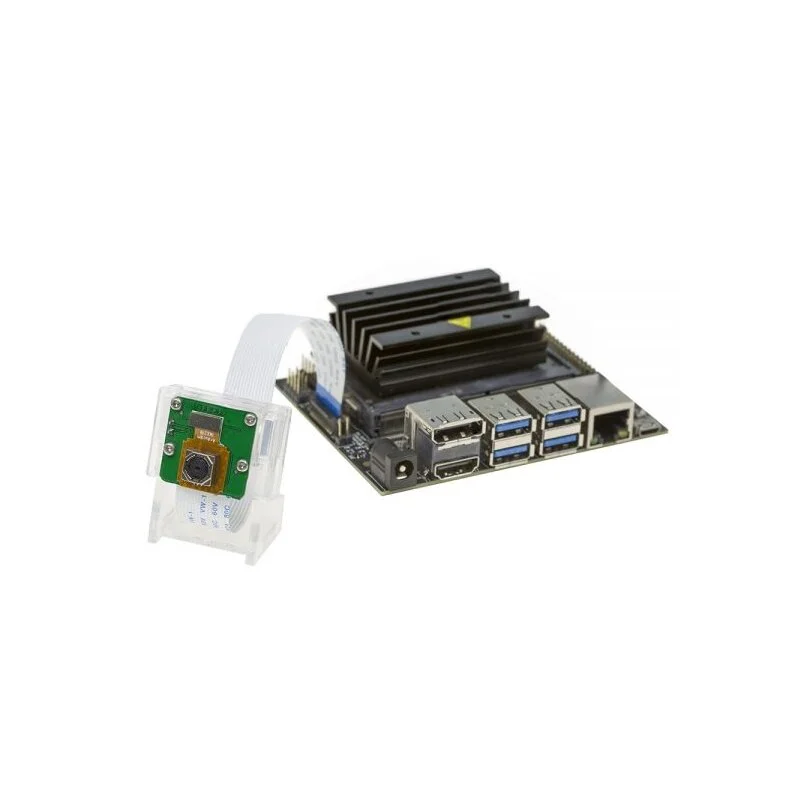

This Arducam 8MP IMX219AF camera module is designed mainly for the NVIDIA Jetson Nano platform and also can be used on other hardware like ARM, DSP, FPGA, etc.
The highlight of this camera is that the lens focus is programmable by software, and the Arducam team provides an open-source code to implement software auto-focus function for Jetson Nano.
- Based on the Sony 8MP IMX219 Sensor
- Comes With 175° Wide Angle M12 Lens
- Frame Rate up to 180FPS @720P
- Fixed Focus Type
- IR Sensitive Camera Module
Specifications:
| Image Sensor | Sony 8MP IMX219 |
| Optical Format | 1/4 inch |
| Lense Viewing Angle (FOV) | 65 |
| Interface | MIPI CSI-2 2-lane |
| IR Sensitivity | Visible light, Integral IR Filter |
| Length (mm) | 25 |
| Width (mm) | 25 |
| Height (mm) | 10 |
| Weight (gm) | 3 |
| Cable Length (cm) | 15 |
