                                                                                                                                                    HomeIot & WirelessArducam Cameras and Accessories Arducam High Quality IR-CUT Camera for Raspberry Pi

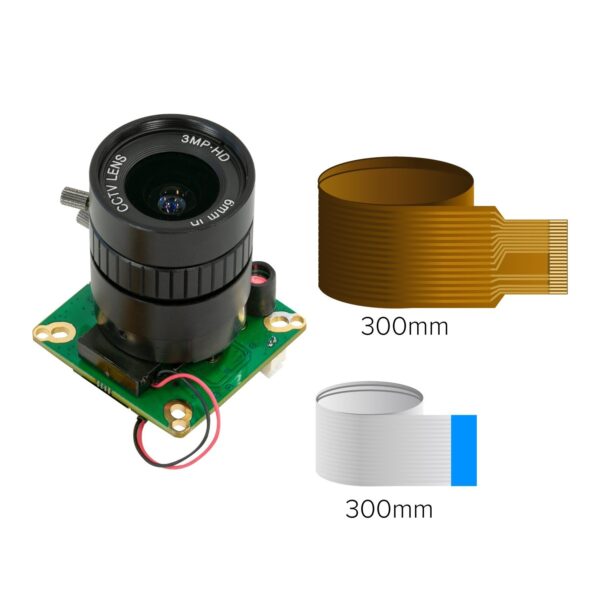

                                                                                                                                                    Arducam High Quality IR-CUT Camera for Raspberry Pi

                                                                                                                                                    ₹9,872.00 (Exclusive GST Tax 18%)

                                                                                                                                                    Available Offers
                                                                                                                                                    • ► Free Shipping By Bluedart Air  : On over value Rs.3000
                                                                                                                                                    • ► Bulk Quantities discount :  send mail on sales@compoindia.com
                                                                                                                                                    • ► Tax invoice  : Get GST invoice and save up to 18% on business purchases

                                                                                                                                                    Note : Customer Don't need to pay any extra charge like custom duty and any other cost. Have to pay only GST with price.

                                                                                                                                                    Out of stock

                                                                                                                                                    ► Bulk Quantities discount :  send mail on sales@compoindia.com



                                                                                                                                                    Great price on bulk order

                                                                                                                                                    Secure Payment

                                                                                                                                                    Fast & Quick Delivery

                                                                                                                                                    7 days Return Policy

                                                                                                                                                    More on shipping and other trade services
                                                                                                                                                    safety-delivery

                                                                                                                                                    Your Safety is our Priority

                                                                                                                                                    India, we care for you and are here for you
                                                                                                                                                    Know More

                                                                                                                                                    Help us improve your shopping experience

                                                                                                                                                    Write your Feed Back

                                                                                                                                                    review

                                                                                                                                                    Can't find what you are looking for?

                                                                                                                                                    Let Us Know
                                                                                                                                                    Add to wishlist
                                                                                                                                                    SKU: M52838 Category: Arducam Cameras and Accessories
                                                                                                                                                    Share
                                                                                                                                                    close
                                                                                                                                                    compoindia | Robotics parts store | Development boards | Raspberry Pi | Display
                                                                                                                                                    4.9
                                                                                                                                                    Based on 130 reviews
                                                                                                                                                    powered by Google
                                                                                                                                                    review us on
                                                                                                                                                    Melford Mutara
                                                                                                                                                    11:21 11 Dec 23
                                                                                                                                                    I was very happy about the servicesGood customer care
                                                                                                                                                    tafadzwa chipere
                                                                                                                                                    11:20 11 Dec 23
                                                                                                                                                    Excellent services
                                                                                                                                                    Bhavin Ambaliya
                                                                                                                                                    10:40 11 Dec 23
                                                                                                                                                    2021 01126
                                                                                                                                                    06:13 23 Nov 23
                                                                                                                                                    the owner helped a lot with our project and explained all the components .
                                                                                                                                                    Aadi Jain 20220301003
                                                                                                                                                    05:27 01 Nov 23
                                                                                                                                                    Gaddam Dinesh
                                                                                                                                                    08:23 07 Oct 23
                                                                                                                                                    Product and service well
                                                                                                                                                    Ishwariya Mathivanan
                                                                                                                                                    17:39 06 Oct 23
                                                                                                                                                    The person responded instantly even after office hours ! Excellent service and extremely fast delivery!!!
                                                                                                                                                    RAVAL DIPAK V.
                                                                                                                                                    14:07 02 Jan 23
                                                                                                                                                    Very good staff. Best price affordable and best quality. Almost all parts like Arduino, raspberry and their components are available. Also Delivery is also quick.
                                                                                                                                                    js_loader
                                                                                                                                                    • Description
                                                                                                                                                    Description

                                                                                                                                                    This Arducam module uses the same 12MP IMX477 image sensor as the Raspberry Pi High-Quality Camera but offers a mechanical IR cut-off filter switched automatically based on light conditions. The official RPi HQ camera is not sensitive to infrared, and there won’t be a NoIR version. On the contrary, this Arducam camera module not only offers sensitivity to infrared but also keeps the natural feeling during daylight. It’s fully compatible with all Raspberry Pi models with a camera connector.

                                                                                                                                                    Important Note On The IMX477 MiPi Lanes

                                                                                                                                                    • Our IMX477 camera module support 4-lane in hardware, but the 4-lane camera driver requires extra customization. Here is why:
                                                                                                                                                    • Standard Raspberry Pi and Jetson Nano/Xavier NX can’t physically support a 4-lane connection (both of them only have 2-lane CSI connectors). Only the Raspberry Pi Compute Module and some 3rd party Jetson Carrier Boards come with 4-lane hardware support. Therefore, it’s not a general need.
                                                                                                                                                    • Extra works, specifically camera drivers, are required for a 4-lane connection other than the 4-lane physical connector. And the drivers are limited by the performances of the platform itself. For example, 4-lane can’t unlock 4k video on Raspberry Pi because the VideoCore does not currently support it. Jetson Nano is also to some extent limited because of the encoding capabilities. You need to make sure you really need it.

                                                                                                                                                    Specifications:

                                                                                                                                                    Camera

                                                                                                                                                    • Sensor: IMX477 – Optical Format: 1/2.3″ (diagonal 7.857mm)
                                                                                                                                                    • Resolution: 4056(H) x 3040(V) 12.3MP
                                                                                                                                                    • Pixel Size: 1.55um x 1.55um
                                                                                                                                                    • IR Sensitivity: Onboard motorized IR cut filter, support both day and night vision
                                                                                                                                                    • Interface: 4-lane MIPI CSI-2
                                                                                                                                                    • Default Lens Mount: CS-Mount
                                                                                                                                                    • Frame Rate: (depends on the target platform, maximum fps limit might apply) Full resolution@60fps(normal), 4K2K@60fps, 1080p@240fps Full resolution@40fps (12bit normal) Full resolution@30fps (DOL-HDR, 2 frames)

                                                                                                                                                    Lens

                                                                                                                                                    • Format: 1/2.3 inch
                                                                                                                                                    • Focal Length: 6mm
                                                                                                                                                    • Aperture (F): Max. F1.2
                                                                                                                                                    • Field of View (FOV): 65° (H)
                                                                                                                                                    • Mount: CS-Mount
                                                                                                                                                    • Back Focal Length: 7.53mm
                                                                                                                                                    • MOD: 0.2m
                                                                                                                                                    • Dimension: Φ30×31mm
                                                                                                                                                    • Weight: 53g

                                                                                                                                                    Camera board

                                                                                                                                                    • Board Size: 38mm×38mm
                                                                                                                                                    • Hole Pitch: Compatible with 29mm, 30mm, 34mm
                                                                                                                                                    • Peak Current: 300mA

                                                                                                                                                    Package Includes:

                                                                                                                                                    • 1 x Arducam High-Quality IR-CUT Camera for Raspberry Pi
