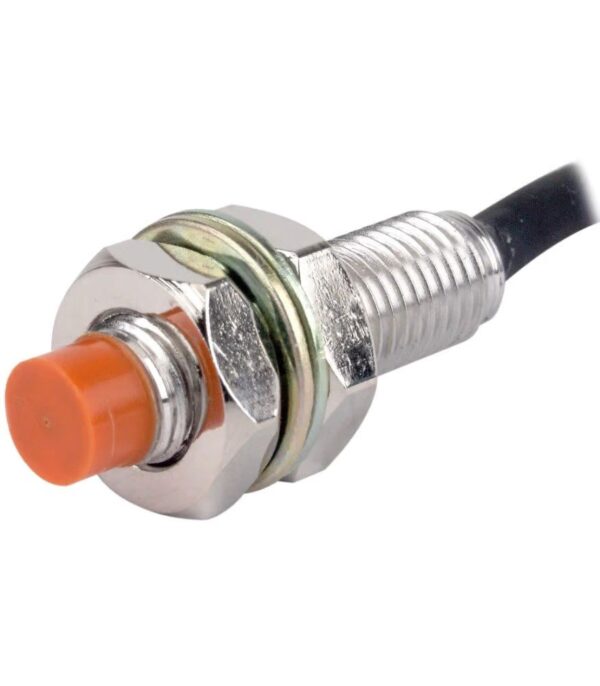

This is Autonics PR08-2DP DC 10~30 2mm M8 Inductive Proximity Sensor PNP-NOSeries enhance superior noise resistance characteristics with dedicated IC which Autonics self-developed. Also, the series can be widely used in any applications where proximity sensors are required because of a diverse range of line-ups in terms of size and sensing distance.
This inductive proximity sensor generates an electromagnetic field to sense metal objects. It features built-in sensitivity volume and provides no-touch object detection. Inductive sensors use a magnetic field to detect objects. Capacitive sensors use an electric field. In order to be sensed by an inductive sensor, an object must be conductive.
This limits suitable targets to metal objects (for the most part). In order to be sensed by a capacitive sensor, the target doesn’t need to be conductive. A capacitive sensor will react to an object acting as a dielectric material as well as a conductive object. This makes metal and non-metal objects suitable targets.
Specifications
| Model | Autonics M08 PNP-NO |
| Operating Voltage (VDC) | 10 ~ 30 |
| Detection Distance (mm) | 2 |
| Outer Thread Size | M8 |
| Object Type | Inductive |
| Output Type | PNP Normally Open Three-line |
| Installation Type | Non-Flush (Unshielded) |
| Max Output Current (mA) | 200 |
| Setting Distance (mm) | 0 ~ 1.4 |
| Response Frequency | 1KHz |
| Insulation Resistance (MΩ) | 50 |
| Operating Temperature (°C) | -25 to 70 |
| Storage condition (℃) | -30 to 80 |
| Cable Diamensions | Ø4, 3-Wire, 2 Meter |
| Shipment Weight | 0.062 kg |
Features:
- Improved the noise resistance with a dedicated IC.
- Built-in reverse polarity protection circuit (DC 3-wire type).
- Built-in surge protection circuit.
- Built-in overcurrent protection circuit (DC type).
- Long life cycle and high reliability, and simple operation.
- IP67 protection structure (IEC standard).
- Replaceable for micro switches and limit switches.
Package Includes:
- 1 x Autonics PR08-2DP DC 10~30 2mm M8 Inductive Proximity Sensor PNP-NO
