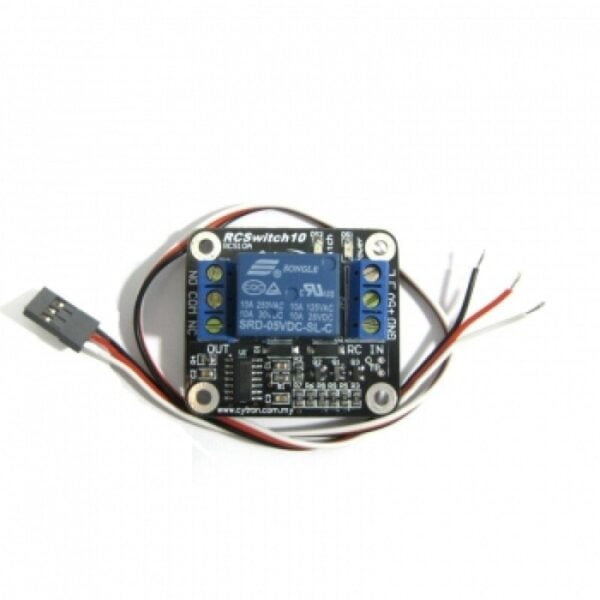

Battle Switch (RCSwitch10) is an RC controlled relay switch. It can be turned on and off by using an RC controller.
Some example applications of the RCSwitch10 are Powerful auxiliary weapons in RC combat tournament, Glow plugs on nitro RC vehicles, High powered lighting system on RC aircraft, boats, and cars. Domestic appliances and home automation, Non-critical automotive electrics like glow wire.
Specifications
| No. of Channels | 1 |
| Trigger Voltage (VDC) | 5 |
| Trigger Current (mA) | Jan-00 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Length (mm) | 44 |
| Width (mm) | 39 |
| Height (mm) | 19 |
| Weight (gm) | 20 |
| Shipment Weight | 0.022 kg |
Features :
- This is a Single Pole Double Throw(SPDT) type of relay
- Purposefully designed for RC Applications
- The perfect tool for beginners
- Can withstand the maximum current of 10A.
Package Includes:
- 1 x Battle Switch (RCSwitch10)
- 1 x Connecting 3 point cable with Connector(30 cm)
