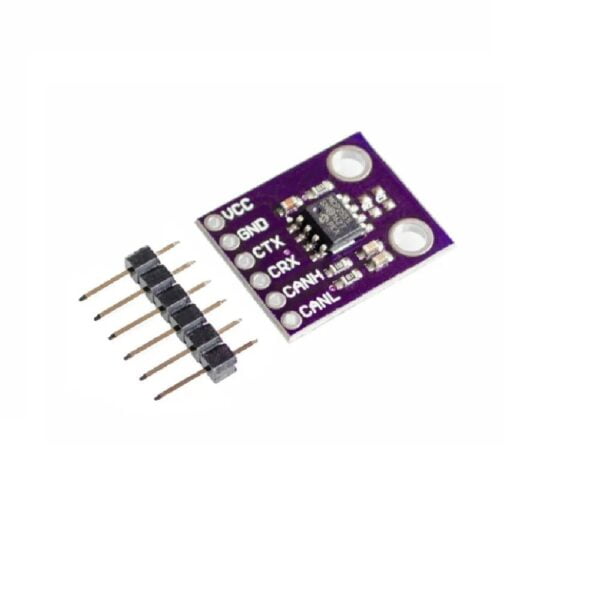

The CJMCU-2551 MCP2551 CAN Protocol Controller High-speed Interface Module is a high speed CAN, with fault-tolerant capabilities. It acts as an interfacing device between CAN protocol and the physical bus. The device, MCP2551 provides differential transmit and receive capabilities and is compliant with the ISO-11898, including the 24V requirements. Data transfer rate of up to 1Mb/s is achievable with this module.
Specifications
| Model | MCP2551 |
| Material | Metal and plastic |
| Input Voltage (V) | 7 |
| Operating Temperature (°C) | -40 to 125 |
| Storage condition (℃) | -55 to 150 |
| Shipment Weight | 0.095 kg |
Features:
- Supports 1 Mb/s operation
- Implements ISO-11898 standard physical layer requirements
- Suitable for 12V and 24V systems
- The externally-controlled slope for reduced RFI emissions
- Detection of ground fault (permanent Dominant) on TXD input
- Power-on Reset and voltage brown-out protection
- An unpowered node or brown-out event will not disturb the CAN bus
- Low current standby operation
- Protection against damage due to short-circuit conditions (positive or negative battery voltage)
- Protection against high-voltage transients
- Automatic thermal shutdown protection
- Up to 112 nodes can be connected
- High-noise immunity due to differential bus implementation
- Temperature ranges:
- – Industrial (I): -40°C to +85°C
- – Extended (E): -40°C to +125°C
Package Includes:
- 1 x CJMCU-2551 MCP2551 CAN Protocol Controller High-speed Interface Module
