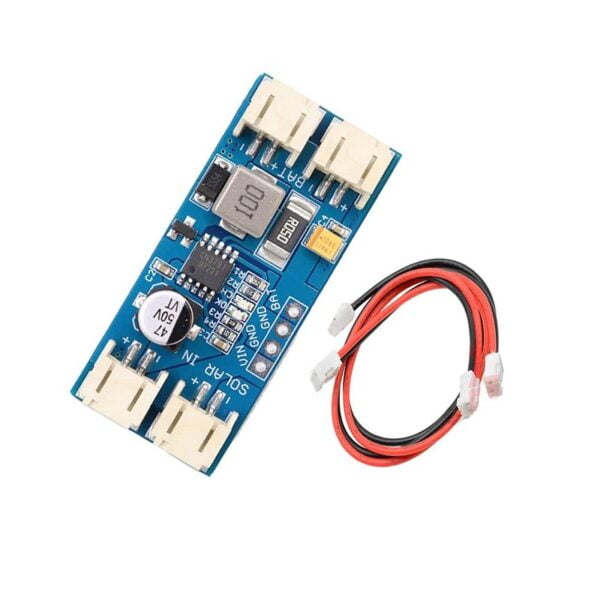

This is a maximum power point tracking (MPPT) solar charger for single-cell LiPo batteries. This MPPT solar charger provides you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargeable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the solar charger and your battery into the other and you are good to start charging!
Specifications
| Model | CN3791 |
| Connector | 2-pin JST |
| Operating Voltage (VDC) | 12 |
| Operating Temperature (°C) | -40 to 85 |
| Swithing Frequency (KHz) | 300 |
| Maximum Charging Current (A) | 2 |
| Length (mm) | 45 |
| Width (mm) | 20 |
| Height (mm) | 9.5 |
| Weight (gm) | 10 |
| Shipment Weight | 0.015 kg |
