The CP2112’s highly integrated USB-to-SMBus bridge controller integrates a USB 2.0 full-speed function controller, USB transceiver oscillator and eight GPIO pins. All customization and configuration options can be selected through a simple GUI-based configurator. Standard HID class devices do not require the development of complex firmware and drivers. The CP2112 device enables fast USB connectivity with minimal development effort.
The CP2112 uses the standard USB HID device class, which is natively supported by most operating systems. A custom driver does not need to be installed for this device. Host applications communicate with the CP2112 through interface libraries provided by Silicon Labs. The interface specification for the CP2112 is also available to enable the development of an API for any operating system that supports HID.
Specifications
| USB bus power supply | 4.0 to 5.25V |
| Self-powered | 3.0 to 3.6V |
| I/O voltage: | 1.8V to VDD |
| Operating temperature | -40 ° C ~ 85 ° C |
| Shipment Weight | 0.01 kg |
Features:
- On-chip power-on reset circuit, on-chip voltage regulator: 3.45 V output
- Compliant with USB specification 2.0 standard; full speed (12Mbps)
- USB suspend status via SUSPEND and /SUSPEND pins
- Integrated 194-byte one-time programmable ROM for storing customizable product information
- 512-byte SMBus data buffer, configurable clock speed device address 7-bit value is the slave address of CP2112
- Windows, Mac, and Linux HID to SMBus libraries API for rapid application development, open-access interface specifications.
- 8 GPIOs can be configured as input/output and open-drain/push-pull, configurable clock output for external devices 48MHz to 94kHz, switching LEDs during read/write SMBus
- Module size: 29.5mm*21.3mm, with two M3 mounting holes, one MicroUSB female port
- Application areas: Portable controllers, USB dongle, data logging
Package Includes:

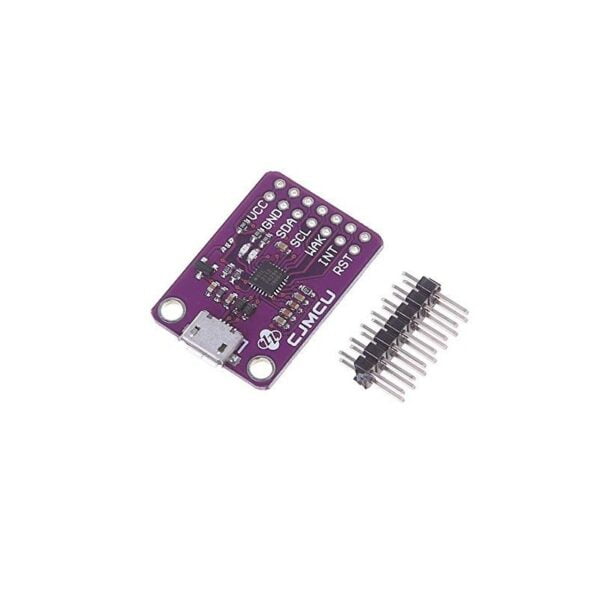

- 1 x CP2112 debug board USB to an I2C communication module
