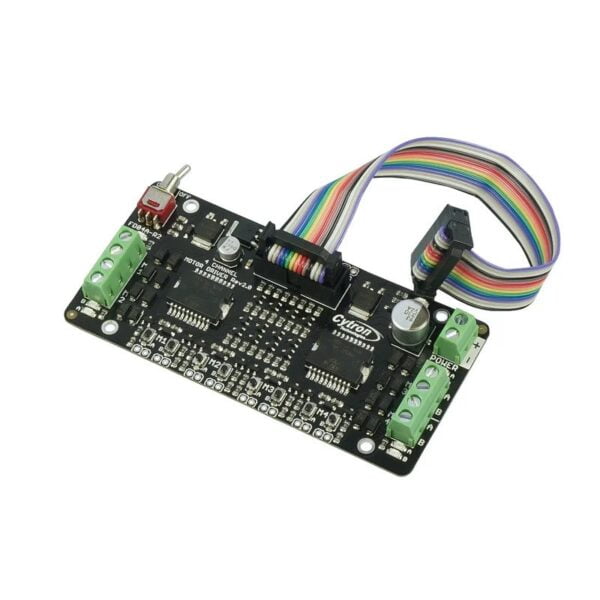

The Cytron FD04A 4-Channel Motor Driver is specially designed to drive four DC brush motors. It can be used to drive more than two motors which are needed on Omni to drive the mobile robot. It offers low cost and easy to use DC motor driver capable of driving up 4 DC brush motor, and the current can goes up to 3-Ampere.
With minimum interface the board is ready for driving motor with direction, start, stop and speed control. Flexibot Driver 4 Channels (FD04A) is specially designed to drive up to 4 DC brush motors.
Specifications
| Driver Model | Cytron FD04A |
| Operating Voltage (VDC) | 7 ~ 25 |
| Recommended Operating Volage | 7~12V |
| Peak Current (A) | Jan-00 |
| Continuous Current (A) | 1.5 |
| No. of Channels | 4 |
| Operating Modes | PWM (Lock-Antiphase and Sign-Magnitude): Yes, UART: No, Analog:No, RC Servo Signal: No |
| Battery Protection Mode | No |
| Over-Current Protection (A) | Yes |
| Thermal Protection | Yes |
| LED Indicator | Yes |
| Test/Manual Button | Yes |
| Cooling Fan | No |
| Polarity Protection | Yes |
| Others | Power Switch On board power switch |
| Dimensions in mm (LxWxH) | 107 x 53 x 12 |
| Weight (g) | 50 |
| Shipment Weight | 0.04 kg |
| Shipment Weight | 1.6 kg |
Features :
- Industrial grade PCB.
- Vmotor: 7 V to 25 V DC.
- Each component is soldered properly and tested.
- Able to drive 4 DC motor at 2.5A (peak), 1.5A continuously.
- Bi-directional control for 4 DC motors.
- 2 LEDs as a direction indicator for each motor.
- 1 LED as a power indicator.
- A pluggable connector for more user-friendly design.
- Fully compatible with Cytron DIY project, Flexibot – Using Transwheel (PR19).
- Dimensions : 107 x 53 x 12 (LxWxH) mm.
Package Includes :
- 1 x 4 Channel Motor Driver- FD04A Module
