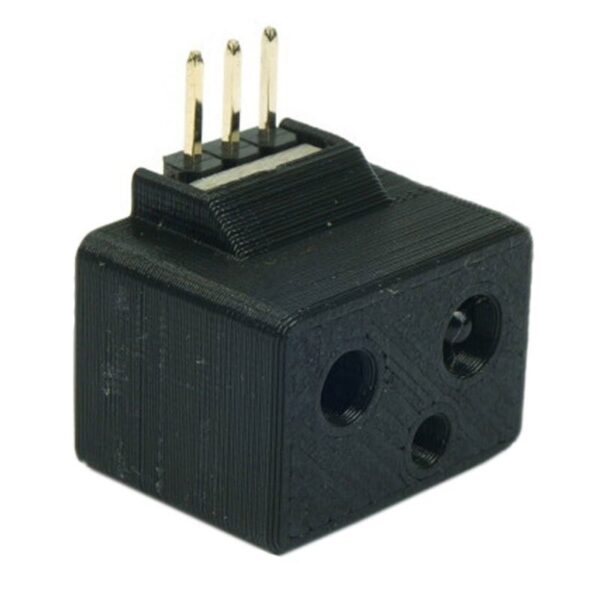

Maker Object is a tiny digital infrared (IR) proximity sensor designed for object/obstacle detection. The IR signal is modulated at 38kHz makes it immune to the ambient light. The Maker Object has NPN output with an internal pull-up resistor. Its output is low when the object is detected. The sensing range is adjustable via the small opening at the front of the sensor. This makes it easily accessible even though the sensor is mounted on the robot.
Due to its small form factor, Maker Object can be easily fitted in tiny robot such as a mini-sumo robot. The 90 degrees pin header is also very handy allowing us to plug in the sensor directly to the PCB or breadboard for quick testing.
Specifications
| Brand | Cytron |
| Operating Voltage | 4.5V – 5.5V |
| Sensing distance(Black Surface)cm | 60 |
| Sensing distance(White Surface)cm | 140 |
| Length(mm) | 18 |
| breadth(mm) | 12 |
| Weight(g) | 4 |
| Shipment Weight | 0.005 kg |
Features:
- Operating Voltage: 4.5V – 5.5V
- Adjustable Sensing Range
- Reverse polarity protection.
- Breadboard friendly
- Active low output
- NPN output with internal pull up
Package Includes:
- 1 x Maker Object: Simplifying Object Sensor
