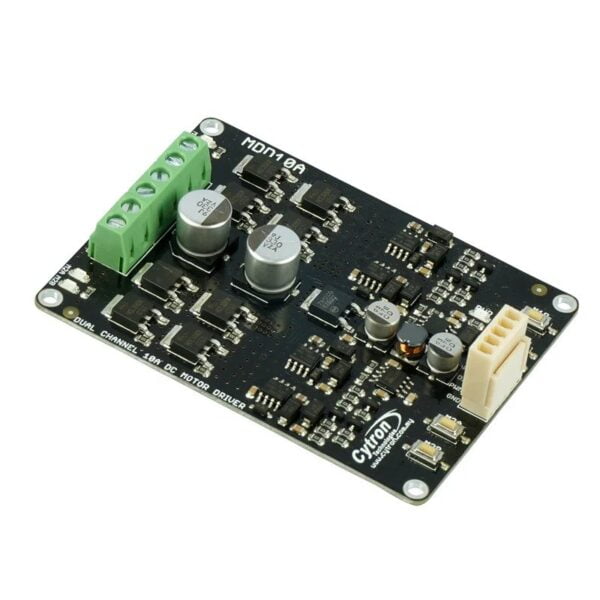

This Cytron Dual Channel Enhanced 10Amp DC Motor Driver 30A Peak MDD10A is the dual-channel version which is designed to drive 2 brushed DC motor with high current up to 13A continuously. Like MD10C, MDD10A also supports locked-antiphase and sign-magnitude PWM signal.
Specifications
| Arduino Sheild | No- can be used with Wire connection |
| Operating Modes | PWM (Lock-Antiphase and Sign-Magnitude): Yes, UART: No, Analog:No, RC Servo Signal: No |
| Continuous Current (A) | 12:00 AM |
| Cooling Fan | No |
| Driver Model | MDD10A |
| LED Indicator | Yes |
| No. of Channels | 2 |
| Operating Voltage (VDC) | 5 ~ 25 |
| Peak Current (A) | 30 |
| Polarity Protection | NO |
| Dimensions in mm (LxWxH) | 85 x 62 x 25 |
| Weight (gm) | 40 |
| Others | No heat sink is required |
| Shipment Weight | 0.043 kg |
Features:
- Bi-directional control of 2 brushed DC motor.
- Support motor voltage ranges from 5V to 25V.
- Maximum current up to 10A continuous and 30A peak (10 seconds) for each channel.
- Solid-state components provide faster response time and eliminate the wear and tear of the mechanical relay.
- Fully NMOS H-Bridge for better efficiency and no heat sink is required.
- Speed control PWM frequency up to 20KHz. Support both locked-antiphase and sign-magnitude PWM operation.
- 2 activation buttons for fast test on each channel.
Package Includes:
- 1 x Cytron MDD10A Dual Channel Enhanced 10Amp DC Motor Driver 30A Peak
