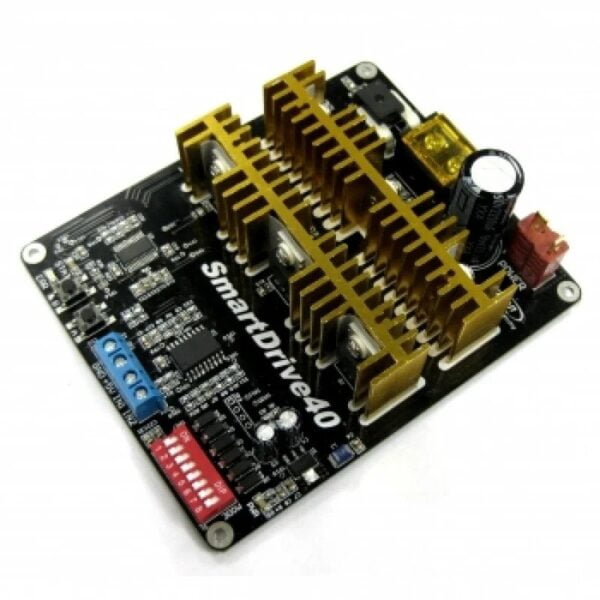

The Cytron SmartDrive40 40AMP DC MOTOR DRIVER (PEAK 80AMP) MDS40A is one of the latest smart series motor drivers designed to drive medium to high power brushed DC motor with current capacity up to 80A peak and 40A continuously.
MOSFETs are switched at 16 KHz to ensure quiet operation and no annoying whining sound. Besides, it also equipped with a microcontroller unit to provide some smart features such as multiple input mode, current limiting, and thermal protection.
Specifications
| Driver Model | Cytron MDS40A |
| Operating Voltage (VDC) | 7 ~ 25 |
| Peak Current (A) | 12:00 AM |
| Continuous Current (A) | Mar-00 |
| Thermal Protection | Yes |
| Polarity Protection | Yes |
| Dimensions in mm (LxWxH) | 120x100x35 |
| Shipment Weight | 0.195 kg |
Features :
- Bi-directional control for a single brushed DC motor.
- Support motor from 7V to 25V.
- Maximum current up to 80A peak (1 second), 40A (5 minutes) or 30A (> 20 minutes) continuously.
- 16 KHz switching frequency for quiet operation.
- Reverse polarity protection.
- LiPo battery low voltage warning.
- Thermal protection.
- Current limiting base on temperature.
- Multiple input modes: RC, Analog, PWM, Simplified Serial and Packetized Serial.
- On board push button for manual operation.
Package Includes :
- 1 x Cytron SmartDrive40 40AMP DC MOTOR DRIVER (PEAK 80AMP) MDS40A
