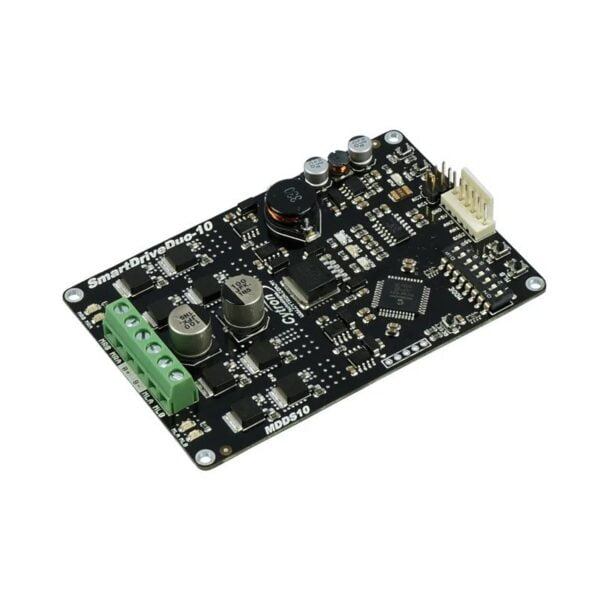

SmartDriveDuo10 is smart brush motor driver, support dual channels, 10A continuous current for each channel. Building a combat/sumo robot become easy, choose motor+wheel, get a proper battery, connect it to MDDS10, choose an RC controller and you have a robot !! Do check the User’s Manual for details.
With knowledge and feedback we gathered from MD10C, MDD10A, MD30C, MDS40A, and MDS160A, we are thrilled to launch this smart motor driver and can’t wait to see what you can do with it.
Specifications
| Driver Model | Cytron MDDS10 |
| Operating Voltage (VDC) | 7 ~ 35 |
| Peak Current (A) | 12:00 AM |
| Continuous Current (A) | Jan-00 |
| No. of Channels | 2 |
| Operating Modes | PWM (Lock-Antiphase and Sign-Magnitude): Yes, UART: Yes Analog: Yes, RC Servo Signal: Yes |
| Over-Current Protection (A) | Yes |
| Thermal Protection | Yes |
| LED Indicator | Yes |
| Test/Manual Button | Yes |
| Cooling Fan | No |
| Arduino Sheild | No- can be used with Wire connection |
| Polarity Protection | NO |
| Dimensions in mm (LxWxH) | 67 x 102 x 25 |
| Weight (gm) | 52 |
| Others | Onboard switching voltage regulator for higher power efficiency. |
| Shipment Weight | 0.057 kg |
Features:
- Single power operation
- Dual Channels means it can drive two brush motor independently, or mixed.
- Operating modes: RC (RC servo signal), Analog, PWM, simplified and packetized UART.
- Support Signed magnitude and Locked Anti-phase in PWM mode.
- Two manual/test buttons for each channel.
- Two output indicator LEDs for each channel.
- Power, Error indicator, RUN status (Left and Right) LEDs
- On board reset button to restart the MCU after changing operation mode.
- Temperature feedback for current limit and prevent overheating of MOSFET.
- Suitable for combat or sumo robot.
- 16KHz switching frequency for quiet operation.
- Onboard switching voltage regulator for higher power efficiency.
- Battery low voltage monitoring mode.
- We have tried this driver with single power window motor at 24V, full load without smoke coming out
Package Includes:
- 1 x Cytron SmartDriveDuo-10 MDDS10
- 1 x Quick Start Guide Manual
