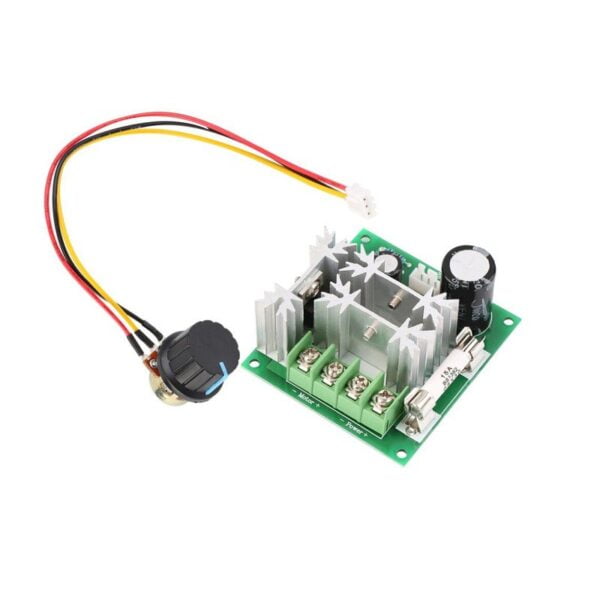

This DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). It’s perfect for applications like fans, etc. providing a nice adjustment of motor speed.
Specifications
| Operating Voltage (VDC) | 6 ~ 90 |
| Max. Operating Current (mA) | 8A |
| Maximum Current | 15A |
| Controlled Power | 0.01-1000W |
| Static Current | 0.005A (Standby) |
| PWM Pulse Width Modulation Range | 0%-100% |
| PWM Frequency | 16KHZ |
| Length (mm) | 60 |
| Width (mm) | 63 |
| Height (mm) | 30 |
| Weight (gm) | 77 |
| Shipment Weight | 0.078 kg |
Features:
- Wide operating voltage: DC 6V-DC 90V, max. power: 1000W.
- A PWM speed controller, enables you to control the speed of DC motors smoothly.
- This motor speed control switch can control the motor speed from between 0% -100%.
- Support PLC control, stable performance, high efficiency and low noise.
- Suitable for applications like fans, etc. providing nice adjustment of motor speed.
Package Includes:
- 1 x DC Motor Speed Controller
- 1 x Potentiometer with connector
