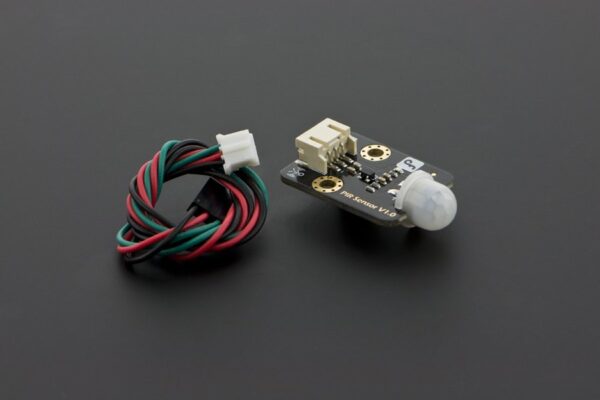

This is a PIR (passive infrared motion) sensor designed to work with Arduino and Raspberry Pi. It allows you to sense motion, it is commonly used to detect whether a human has moved in or out of the sensor’s range. They are small, inexpensive, low-power, easy to use, and don’t wear out. For that reason, they are commonly found in appliances and gadgets used in homes or businesses. They are often referred to as PIR, “Passive Infrared”, “Pyroelectric”, or “IR motion” sensors.
Specifications
| Input Voltage (V) | 3.3~5 |
| Working Current(uA) | 12:00 AM |
| Output Voltage(V) | High: 3V |
| low: 0V | |
| Viewing Angle | 100 Degree |
| Pin limit current(mA) | 9-Apr |
| Interface | PH2.0-3 |
| Working Temperature Range (°C) | -20 to 80 |
| Length (mm) | 0:00 |
| Weight (gm) | 22 |
| Shipment Weight | 0.07 kg |
Features:
- Low power consumption
- Compact size
- Cost-effective
- Adjustable sensitivity
Package Includes:
- 1 x Gravity: Digital PIR Sensor
- 1 x Gravity: Digital Cable
